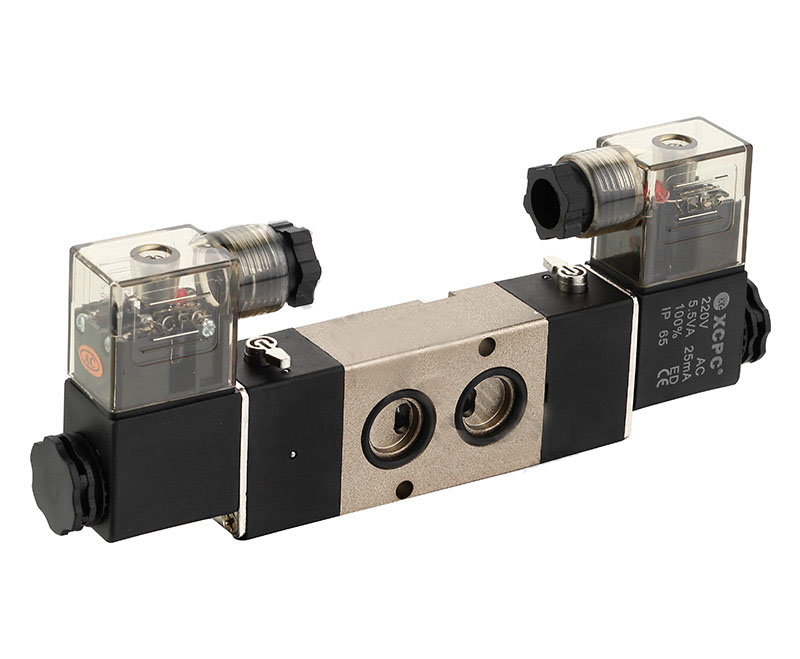

4M Series Plate Type Valve
SERIES: 4M Series Plate Type Valve
4M Series Plate Type Valve
FEATURES
 Working Medium
|
40 Micron Filtered Air
|
|
Motion Pattern
|
Inner Guide Type
|
|
Position and Way NO.
|
Two-position three-way
|
|
Lubricate
|
Not Necessary
|
|
Working-Pressure
|
0.15~0.8MPa
|
|
Max.Pressure Resistance
|
1.2MPa
|
Ordering Code
Specification
|
Model
|
4M210-06
|
4M220-06
|
4M210-08
|
4M220-08
|
4M310-08
|
4M320-08
|
4M310-10
|
4M320-10
|
|
Working Medium
|
40 Micron Filtered Air
|
|||||||
|
Motion Pattern
|
Inner Guide Type
|
|||||||
|
Position and Way NO.
|
Two-position three-way
|
|||||||
|
Effective Section Area
|
14mm 2(CV=0.78)
|
16mm 2(CV=0.89)
|
25mm 2(CV=1.39)
|
30mm 2(CV=1.67)
|
||||
|
Port Size
|
Air Inlet=Exhaust=G1/8”
|
Air Inlet=G1/4”/Exhaust=G1/8”
|
Air Inlet=Exhaust=G1/4”
|
Air Inlet=G3/8”Exhaust=G1/4”
|
||||
|
Lubricate
|
Not Necessary
|
|||||||
|
Working-Pressure
|
0.15~0.8MPa
|
|||||||
|
Max.Pressure Resistance
|
1.2MPa
|
|||||||
|
Operating Temperature
|
5~60℃
|
|||||||
|
Voltage Range
|
-15%~+10%
|
|||||||
|
Power Consumption
|
AC380V:2.5VA,AC220V:2.0VA,AC110V:2.5VA,AC24V:3.5VA,DC24V:3.0W,DC12V:2.5W
|
|||||||
|
Insulation & Protection Class
|
F CIass.IP65
|
|||||||
|
Wiring Form
|
Lead wire or Connector type
|
|||||||
|
Highest Action Frequency
|
5 Cycle / Sec
|
|||||||
|
Shortest Excitation Time
|
0.05 Second
|
|||||||
Overall Dimensions
