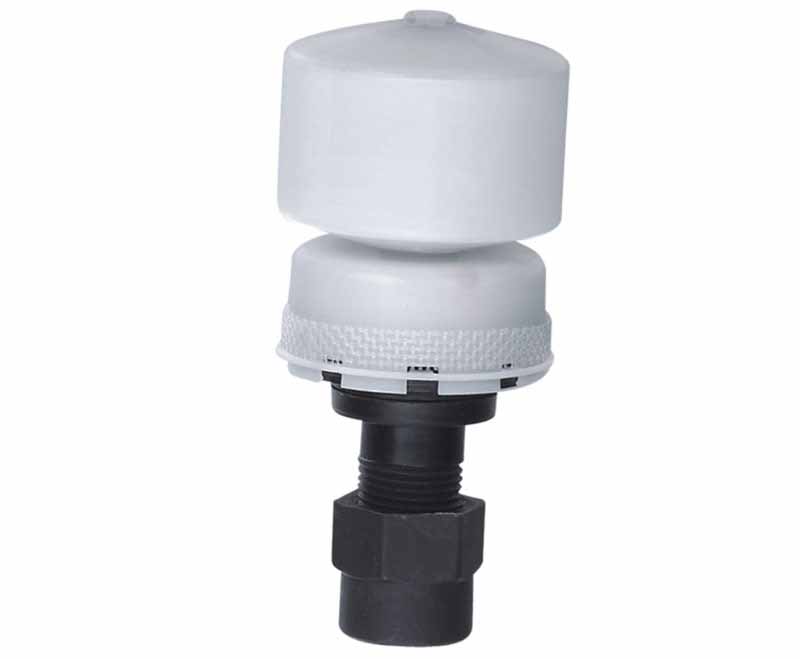

XADV
SERIES: Auto drain
XADV
FEATURES
This product is installed at the bottom of water cups for auto dischargers,air filters and air filter regulators and can auto discharge the condense water gathered in the water cup.

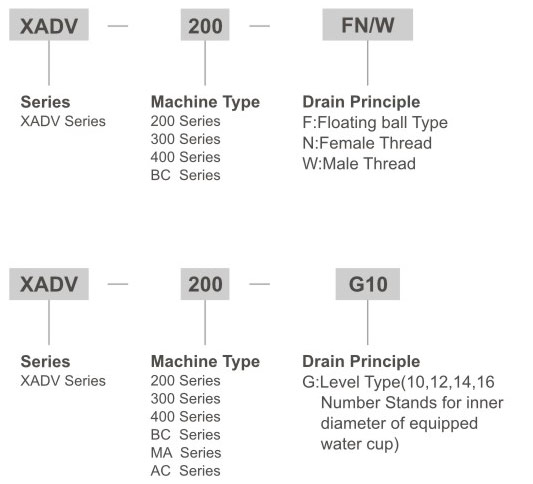

Ordering Code

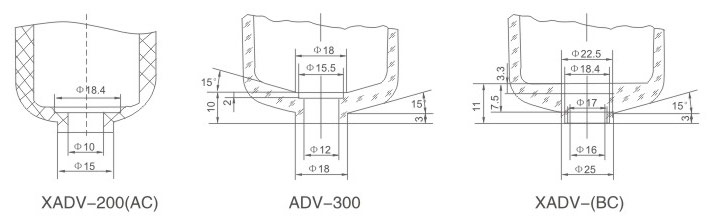

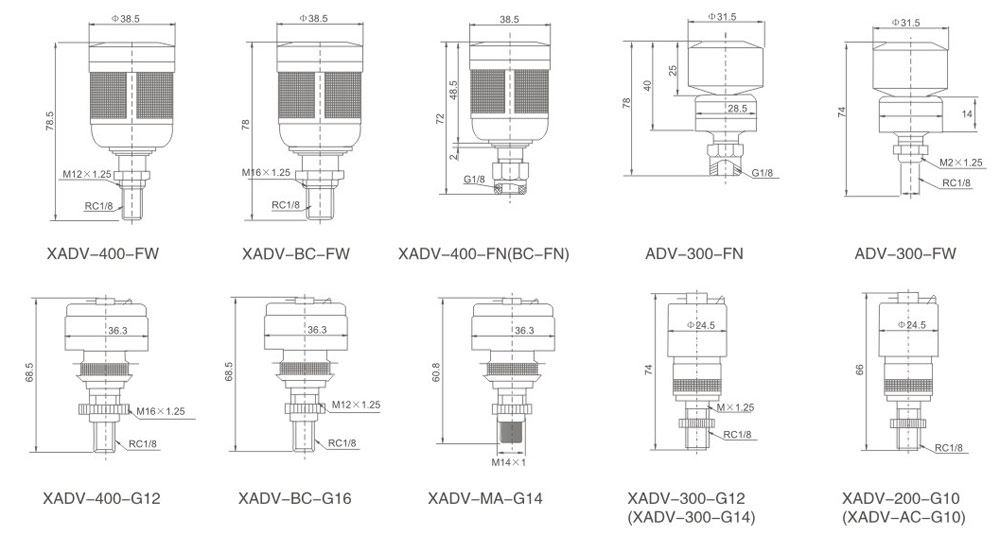

Overall Dimensions

Other info
Range of Application:

This product is installed at the bottom of water cups for auto
dischargers,air filters and air filter regulators and can auto
discharge the condense water gathered in the water cup.


Technical Requirements:

Working medium:Compressed air
Ambient and media temperature:5~60℃
Operating pressure range:0.15~1.00Mpa


Feature:

Auto drainer/Air Shut off Drain/Manual Drain


Points For Attention:

When using,the drainer should be installed vertically the drain
port facing down.
