Pressure Controller
SERIES: Pressure Controller
Pressure Controller
FEATURES
|
For use with fluorinated refrigerants as well as with a air and water. |
Specification
|
Model
|
Range(bar)
|
Differential(bar)
|
Factory Setting(bar)
|
Max. Bellows Press(bar)
|
|||
|
Min.
|
Max.
|
Min.
|
Max.
|
OFF
|
ON
|
||
|
HLP503
|
-0.7
|
3
|
0.2
|
1.5
|
2
|
1
|
16.5
|
|
HLP506
|
-0.7
|
6
|
0.6
|
4
|
3
|
2
|
16.5
|
|
HLP506M
|
-0.7
|
6
|
Duplicate voltage disparrity≤1
|
3
|
Manual Reset
|
16.5
|
|
|
HLP110
|
1
|
10
|
1
|
3
|
6
|
5
|
16.5
|
|
HLP516
|
5
|
16
|
1
|
4
|
10
|
8
|
35
|
|
HLP520
|
5
|
24
|
2
|
5
|
16
|
13
|
35
|
|
HLP530D
|
5
|
30
|
5
|
10
|
20
|
15
|
35
|
|
HLP530
|
8
|
30
|
Fixed3-5
|
20
|
15-17
|
35
|
|
|
HLP530M
|
8
|
30
|
Duplicate voltage disparrity≤4
|
20
|
Manual Reset
|
35
|
|
|
Model
|
Press Side
|
Range(bar)
|
Differential(bar)
|
Factory Setting(bar)
|
Max. Bellows Press(bar)
|
|||
|
Min.
|
Max.
|
Min.
|
Max.
|
OFF
|
ON
|
|||
|

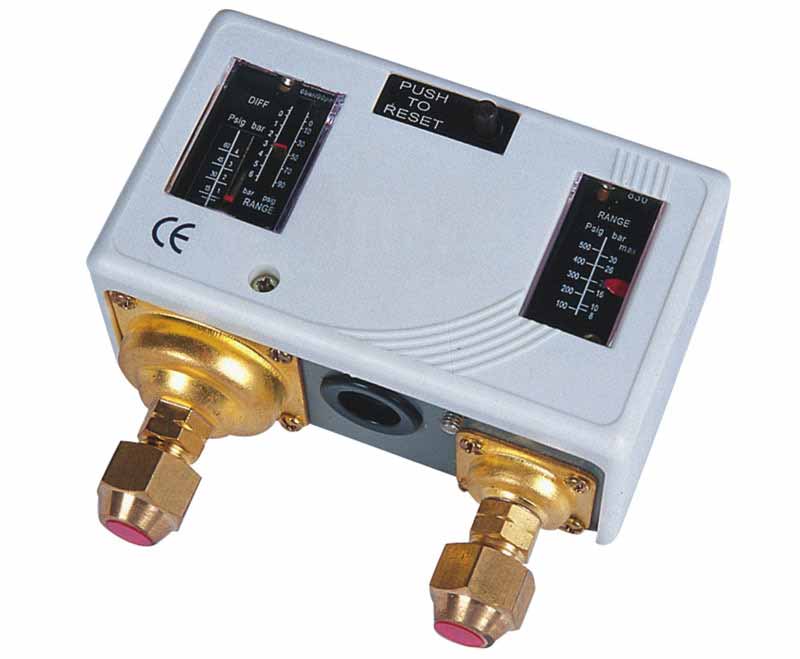

HLP830
|
Low Side
|
-0.7
|
6
|
0.6
|
4
|
3
|
2
|
16.5
|
|
High Side
|
8
|
30
|
Fixed3-5
|
2
|
15
|
35
|
||
|
HLP830HM
|
Low Side
|
-0.7
|
6
|
0.6
|
4
|
3
|
2
|
16.5
|
|
High Side
|
8
|
30
|
Duplicate voltage disparrity≤4
|
20
|
Manual Reset
|
35
|
||
|
HLP830HLM
|
Low Side
|
-0.7
|
6
|
|
|
3
|
Manual Reset
|
16.5
|
|
High Side
|
8
|
30
|
Duplicate voltage disparrity≤4
|
20
|
Manual Reset
|
35
|
||

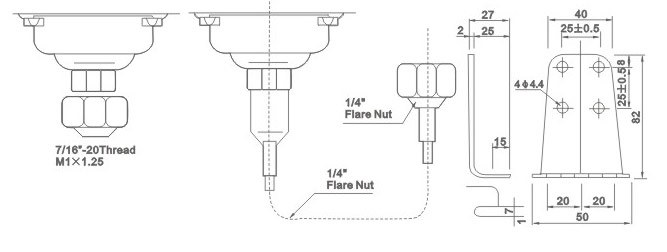

Overall Dimensions
|
Specified Voltage(V)
|
A.C. 125
|
A.C. 125
|
|
Specified Electric Current(A)
|
||
|
Non-Inductuv Current
|
48
|
12
|
|
Maximum Load
|
48
|
12
|
|
Twinking Electric Current
|
228
|
72
|
