PU220 Direct Drive Type Solenoid Valve
SERIES: PU220 Direct Drive Type Solenoid Valve

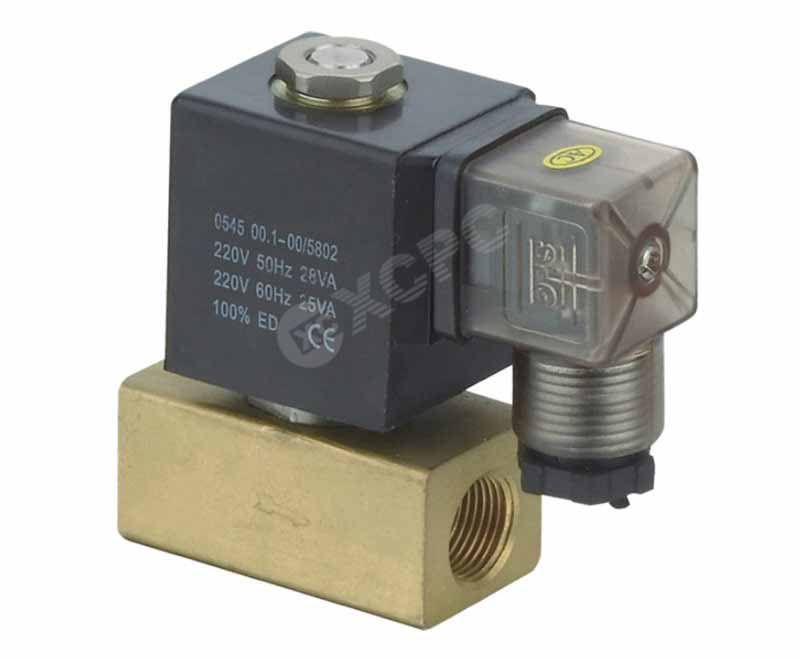

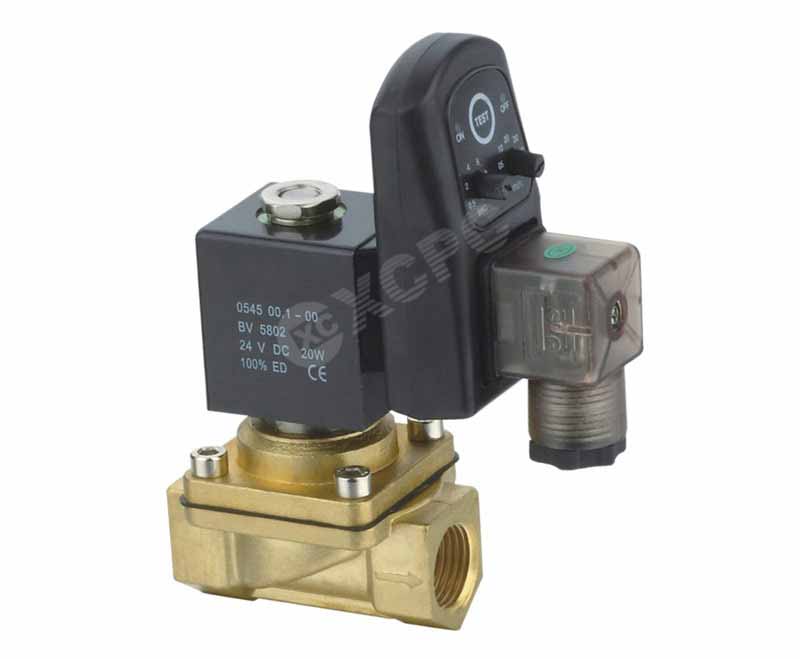

PU220 Direct Drive Type Solenoid Valve
FEATURES
 Working Medium
|
Air, Water, Oil
|
|
Motion Pattern
|
220: Direct Drive Type / 225: Guid Type
|
|
Type
|
Normal Close Type
|
|
Operation Fluid Viscosity
|
50 CST
|
|
Working-pressure MPa
|
0~0.7MPa
|
|
Max. Pressure Resistance
|
1.05MPa
|
Ordering Code
Specification
|
Model
|
PU220-01AR
|
PU220-02AR
|
PU220-03AR
|
PU220-03A
|
PU220-04AR
|
PU220-04A
|
PU220-06A
|
PU220-08A
|
|
Working Medium
|
Air, Water, Oil
|
|||||||
|
Motion Pattern
|
220: Direct Drive Type / 225: Guid Type
|
|||||||
|
Type
|
Normal Close Type
|
|||||||
|
Aperture of Flow Rate(mm)
|
1.5
|
2.3
|
8
|
13
|
8
|
13
|
20
|
25
|
|
CV Value
|
0.10
|
0.18
|
1.00
|
4.00
|
0.10
|
4.00
|
8.60
|
11.00
|
|
Joint Pipe Bore
|
G1/8″
|
G1/4″
|
G3/8″
|
G3/8″
|
G1/2″
|
G1/2″
|
G3/4″
|
G1″
|
|
Operation Fluid Viscosity
|
50 CST
|
|||||||
|
Working-pressure MPa
|
0~0.7MPa
|
|||||||
|
Max. Pressure Resistance
|
1.05MPa
|
|||||||
|
Operating Temperature ℃
|
-5~+80℃
|
|||||||

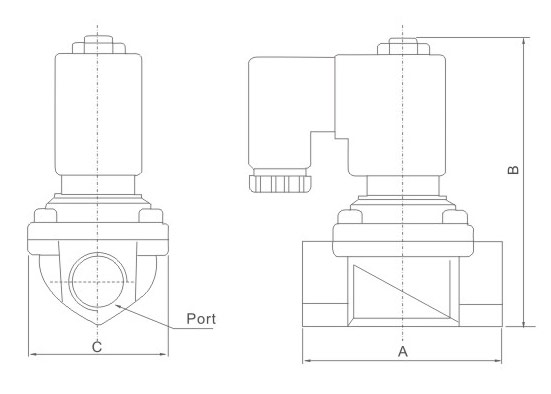

Overall Dimensions
|
NO
|

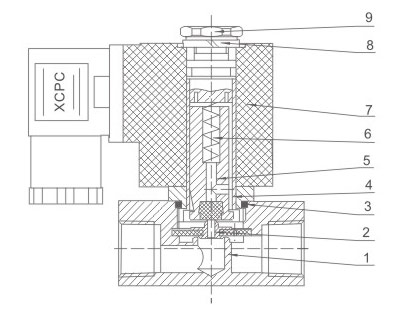

Name
|
|
1
|
Body Of Value
|
|
2
|
Assembly of Diaphragm
|
|
3
|
O-ring
|
|
4
|
Assembly Of Iron Core
|
|
5
|
Assembly Of Iron Core
|
|
6
|
Spring
|
|
7
|
Coil
|
|
8
|
Gasket
|
|
9
|
Nut
|
|
Model
|
Bore
|
A
|
B
|
C
|
|
PU220-01
|
G1/8"
|
22
|
72
|
22
|
|
PU220-02
|
G1/4″
|
35
|
75.5
|
25.4
|
|
PU220-03
|
G3/8″
|
55
|
79.5
|
30
|
|
PU220-04
|
G1/2″
|
66.5
|
101
|
48
|
|
PU220-06
|
G3/4＂
|
71
|
107
|
48
|
|
PU220-08
|
G1＂
|
96
|
120
|
70
|
