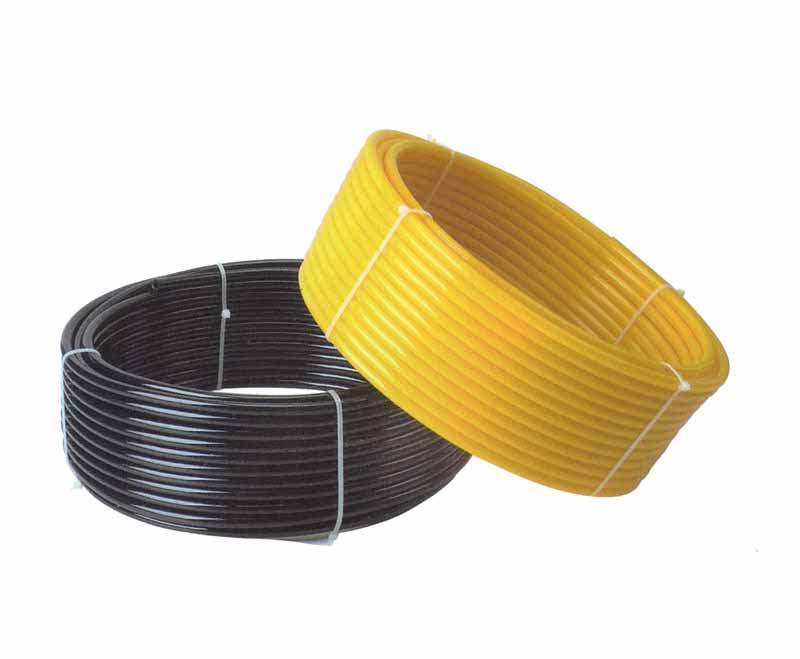

Nylon Tube (NY tube)
SERIES: Nylon Tube (NY tube)
Nylon Tube (NY tube)
FEATURES
 Pneumatic system, air toolss
|
|
Vacuum
|
|
Automation
|
|
Plant Imstrumentation
|
|
Paint supply Lines
|
|
Construction applications
|
|
Motion control devices
|

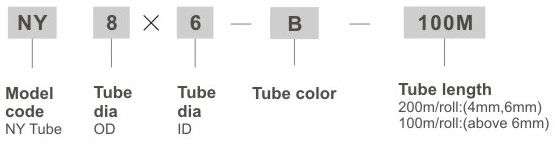

Ordering Code
Specification
|
Model
|
NY
|
|
Working Medium
|
Compressed Air
|
|
Working-Pressure
|
0~1.0MPa
|
|
Sevice Temperature range
|
-40~90℃
|
|
Durometer
|
80-92 Shore A
|
Other info
|
Model
|
O.D(mm)
|
I.D(mm)
|
Thickness(mm)
|
Lenth M/Roll
|
Min.bend radius at 20℃(mm)
|
Min.burst pressure at 20℃(bar)
|
Max.working pressure at 20℃(bar)
|
|
NY 4X2.5
|
4
|
2.5
|
0.75
|
200
|
20
|
90
|
30
|
|
NY 6X4
|
6
|
4
|
1.00
|
200
|
30
|
90
|
30
|
|
NY 8X6
|
8
|
5
|
1.00
|
100
|
40
|
90
|
30
|
|
NY 10X7.5
|
10
|
7.5
|
1.25
|
100
|
50
|
90
|
30
|
|
NY 12X9
|
12
|
9
|
1.50
|
100
|
60
|
90
|
30
|
|
NY 10X8
|
6.35
|
4
|
1.00
|
100
|
60
|
90
|
30
|
|
NY 12X10
|
9.52
|
6.35
|
1
|
100
|
120
|
90
|
30
|
|
NY 1X4
|
12.7
|
8.46
|
1.075
|
200
|
35
|
90
|
30
|
|
NY 3X8
|
9.52
|
6.35
|
1.575
|
100
|
55
|
90
|
30
|
|
NY 1X2
|
12.7
|
8.46
|
1.55
|
100
|
120
|
90
|
30
|
|
Color
|
Natural
|
Black
|
Yellow
|
Milk white
|
Blue
|
Clear blue
|
Green
|
Red
|
|
Code
|
NT
|
B
|
YW
|
MW
|
BU
|
CB
|
GN
|
RD
|
|
