SERIES: Mini Fittings

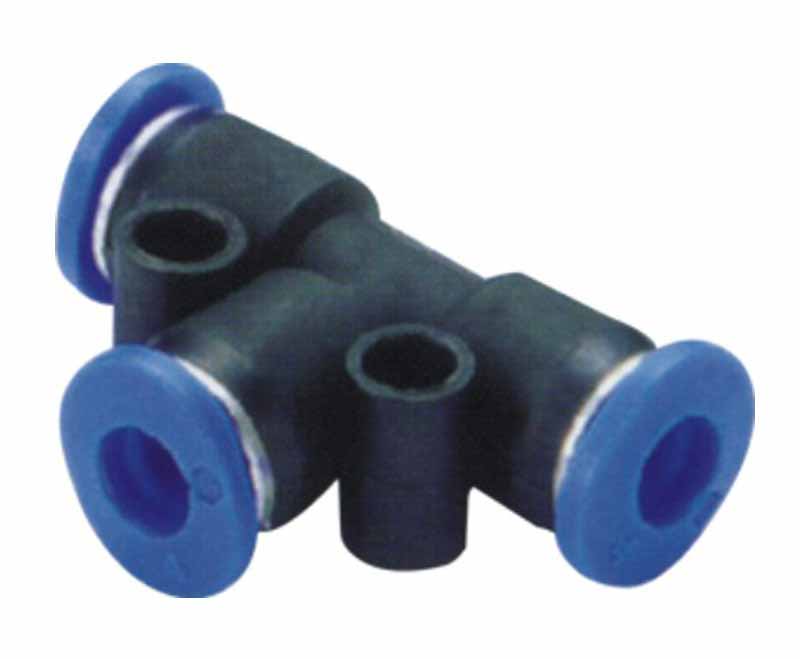

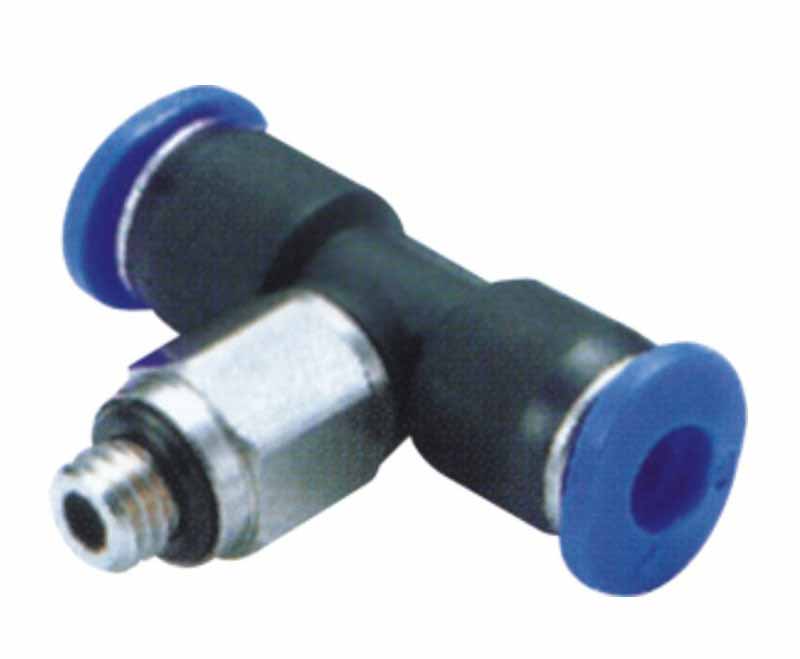

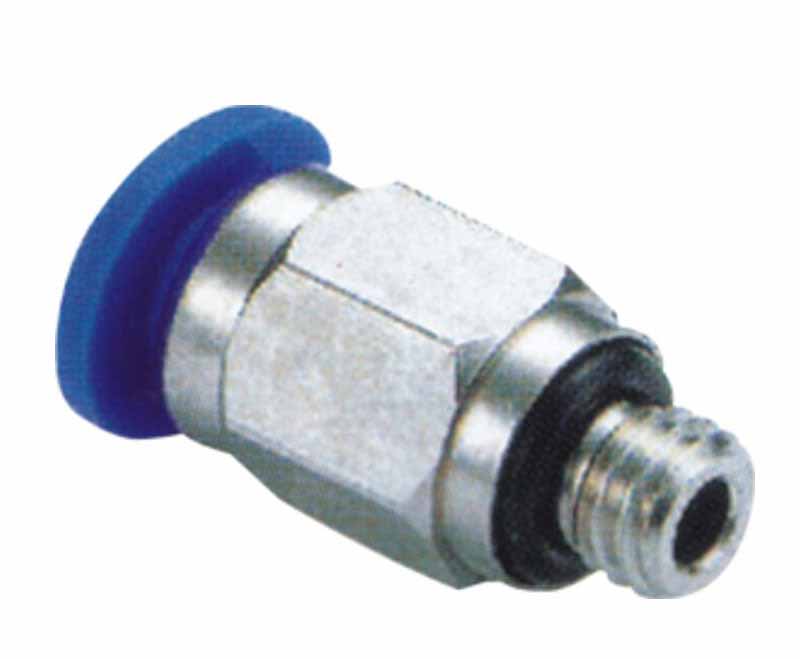

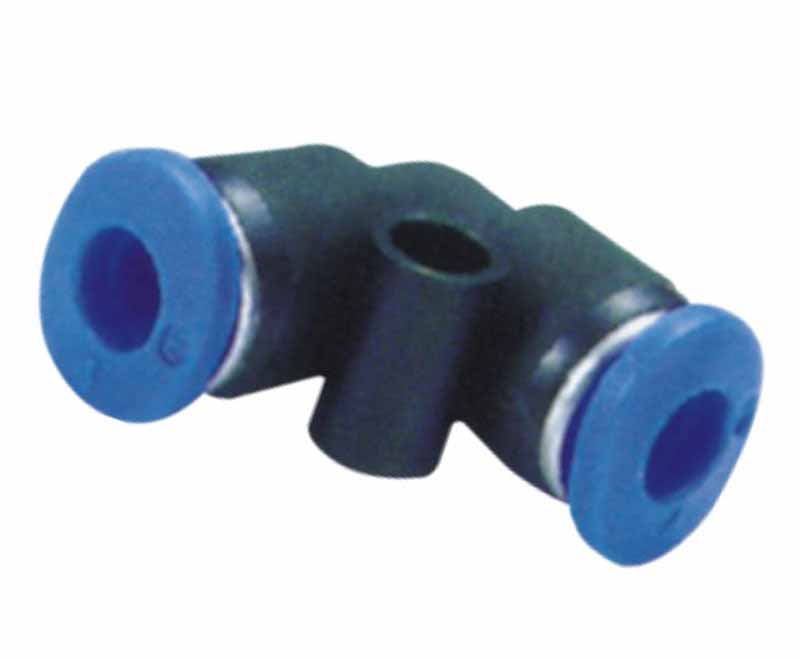

Mini Fittings
FEATURES
|
Ideal for pneumatic connections specifically for small and compactequipments. Aesthetically pleasing nickel-plated metalIic standardized feature for alIapplicable compact fittings. |

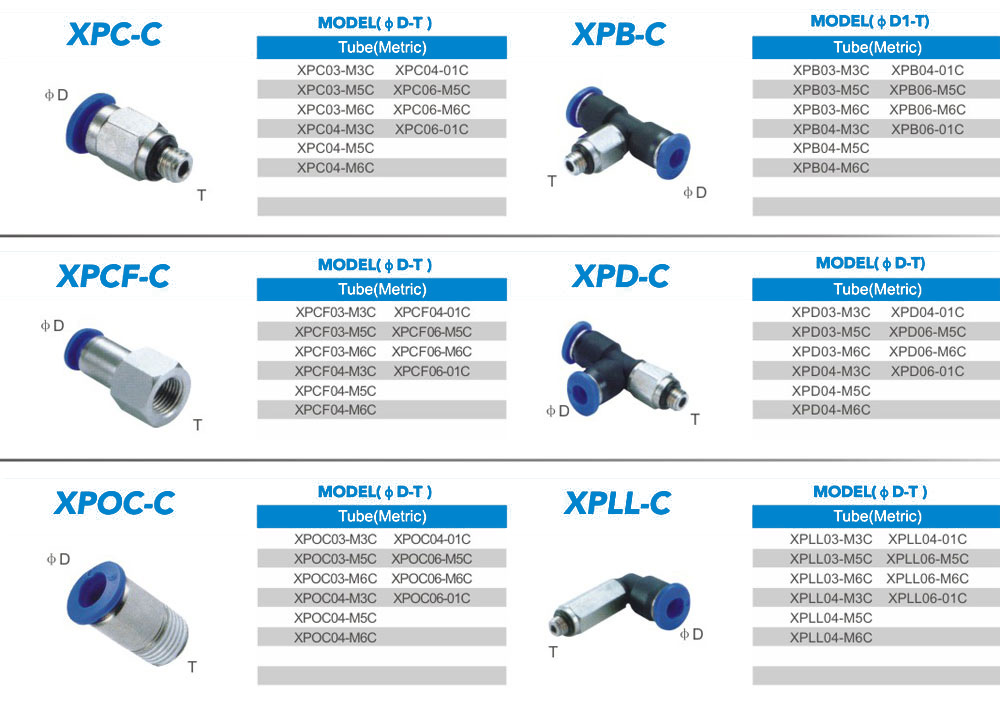

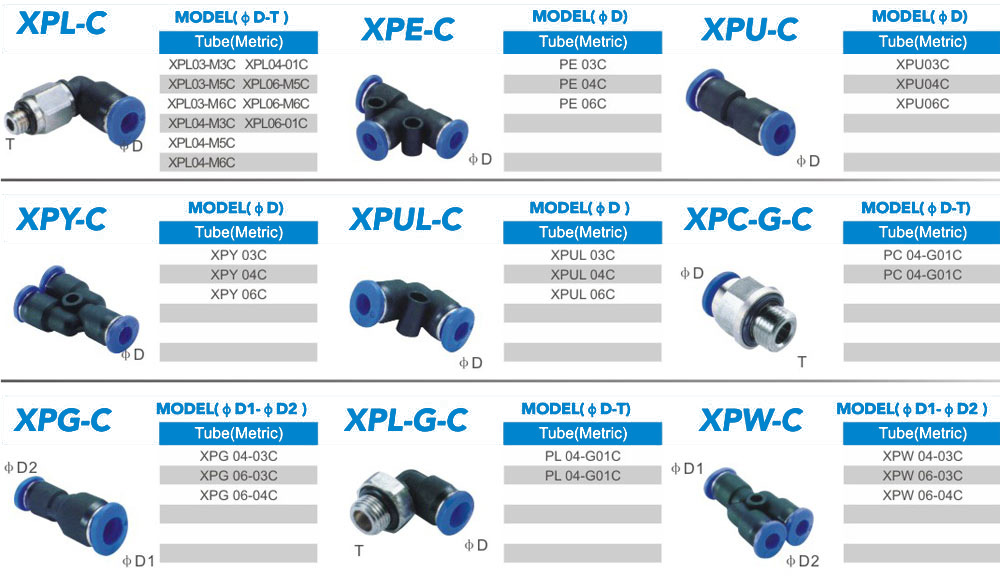

Ordering Code
Specification
|
Fliud Type
|
Air,Vacuum
|
|
Operating Pressure
|
0~10.2Kgf/cm2(0~1.0Mpa)
|
|
Negative Pressure
|
-750mm Hg(10Torr)
|
|
Operating Temperature Range
|
0~60℃
|
|
Tube Material
|
Nylon and Polyurethane
|
(1)Model Type
(2)Tube Outer Diameter(ΦD)
|
Metric Size
|
|||
|
Code
|
03
|
04
|
06
|
|
ΦD
|
3mm
|
4mm
|
6mm
|
(3)Thread Type & Size
Metric Size
|
Metric Size
|
|||
|
Code
|
M3
|
M5
|
M6
|
|
ΦD
|
M3×0.5
|
M5×0.8
|
M6×1
|
Taper Pipe Thread
|
R(PT)Thread
|
||
|
Code
|
01
|
G01
|
|
ΦD
|
R1/8"
|
G1/4"
|
(4)Compact Type
