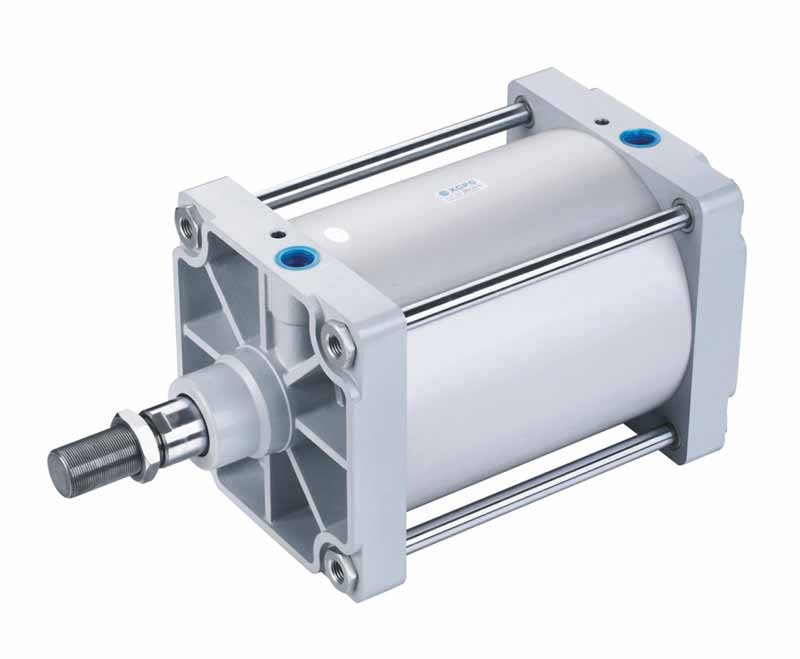

 Motion Pattern:
|
Double Action |
|
Working Medium:
|
Air |
|
Buffer Type:
|
Adjustable Buffer |
|
Working Pressure Range:
|
0.1~1.0MPa |
|
Ensured Pressure Resistance:
|
1.5MPa |
|
Operating Temperature Range:
|
-5~60℃ |
|

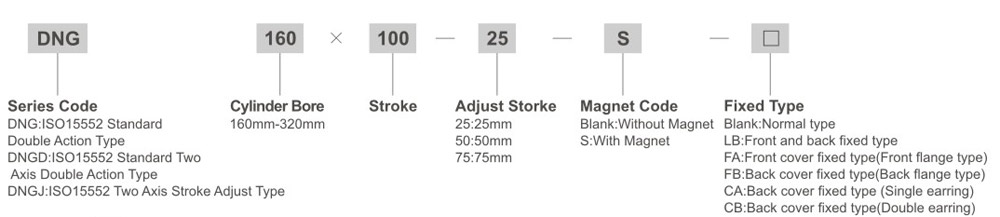

Bore(mm) |
160 |
200 |
250 |
320 |
|
|
Motion Pattern |
Double Action |
||||
|
Working Medium |
Air |
||||
|
Fixed Type |
Normal type FA type FB type CA type CB type LB type TC type |
||||
|
Working Pressure Range |
0.1~1.0MPa |
||||
|
Ensured Pressure Resistance |
1.5MPa |
||||
|
Operating Temperature Range |
-5~60℃ |
||||
|
Operating Speed Range |
50~500mm/s |
||||
|
Buffer Type |
Adjustable Buffer |
||||
|
Port Size |
G3/4" |
G1" |
|||
|
Lubrication
|
Not required (Use Turbine oilISO Vg32 when necessary)
|
||||
|

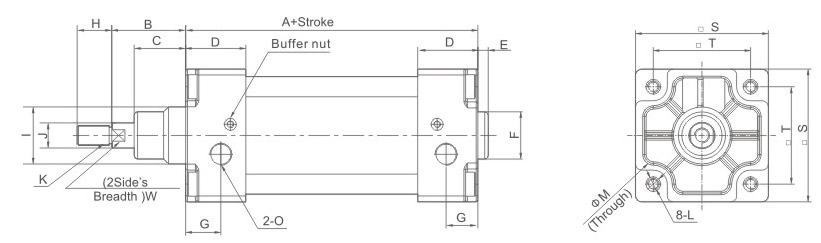

Bore |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
S |
T |
O |
|
160 |
180 |
80 |
60 |
50 |
6 |
φ65 |
25 |
72 |
φ65 |
40 |
M36×2 |
M16 |
φ25dp30 |
180 |
140 |
G3/4" |
|
200 |
180 |
95 |
70 |
50 |
6 |
φ75 |
25 |
72 |
φ75 |
40 |
M36×2 |
M16 |
φ25dp30 |
220 |
175 |
G3/4" |
|
250 |
200 |
105 |
67 |
52 |
10 |
90 |
31 |
84 |
90 |
50 |
M42×2 |
M20 |
φ30 |
270 |
220 |
G1" |
|
320 |
218 |
120 |
82 |
52 |
10 |
110 |
31 |
96 |
110 |
63 |
M48×2 |
M24 |
φ34 |
340 |
270 |
G1" |
