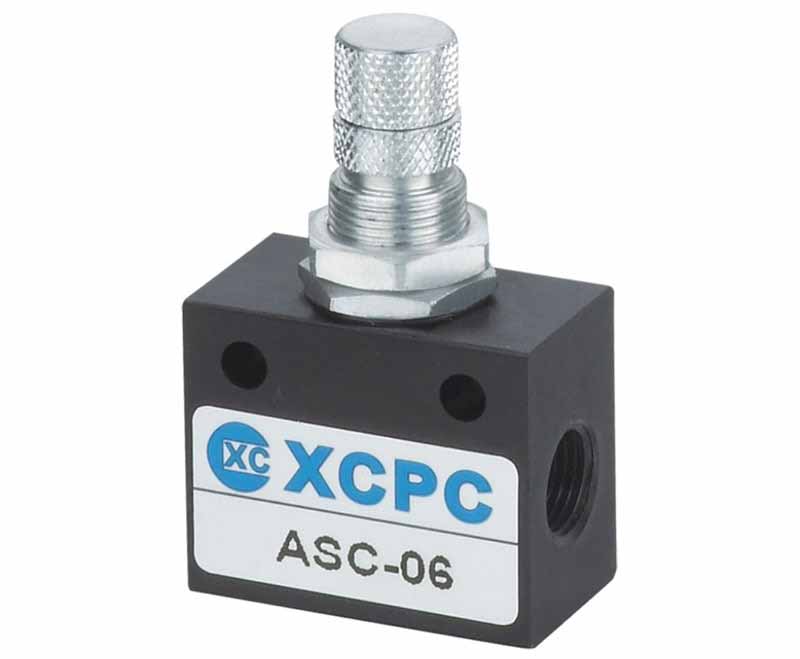

ASC Series Accurate Type Flow Control Valve
SERIES: ASC Series Accurate Type Flow Control Valve
ASC Series Accurate Type Flow Control Valve
FEATURES
 Working Medium
|
Air
|
|
Working-pressure Range
|
0~0.95MPa
|
|
Operating Temperature Range
|
0~60℃
|
Ordering Code
Specification
|
Model
|
ASC-06
|
ASC-08
|
ASC-10
|
ASC-15
|
|
Port Size
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
|
Working Medium
|
Air
|
|||
|
Working-pressure Range
|
0~0.95MPa
|
|||
|
Operating Temperature Range
|
0~60℃
|
|||

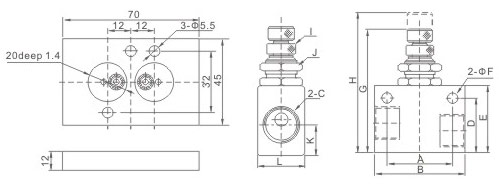

Overall Dimensions
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
|
ASC-06
|
22
|
32
|
G1/8
|
22
|
27
|
4.3
|
49.7
|
56.5
|
M6×0.5
|
M12×0.75
|
12
|
18
|
|
ASC-08
|
26
|
36
|
G1/4
|
22
|
27
|
4.3
|
49.7
|
56.5
|
M6×0.5
|
M12×0.75
|
12
|
18
|
|
ASC-10
|
28
|
40
|
G3/8
|
25
|
30
|
4.3
|
52.7
|
59.5
|
M6×0.5
|
M12×0.75
|
13
|
22
|
|
ASC-15
|
28
|
40
|
G1/2
|
30
|
35
|
4.3
|
58.7
|
65.5
|
M6×0.5
|
M12×0.75
|
13.5
|
26
|
