Double acting, single rod/double rod |
|
|
Filtered compressed air |
|
|
1.5MPa |
|
|
-20~80 (No freezing) |
|
|
Rubber bumper |
Action
|
Bore(mm) |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
|
Action |
Double acting, single rod/double rod |
|||||||||
|
Fluid |
Filtered compressed air |
|||||||||
|
Ensured Pressure Resistance |
1.5MPa |
|||||||||
|
Operating |
ADVU - -P-A |
0.12~1.0MPa |
0.1~1.0MPa |
0.08~1.0MPa |
0.06~1.0MPa |
|||||
|
ADVU - -P-A-S2 |
0.13~1.0MPa |
0.12~1.0MPa |
0.1~1.0MPa |
0.8~1.0MPa |
||||||
|
Ambient and fluid temperature |
-20~80 (No freezing) |
|||||||||
|
Port size |
M5 |
G1/8" |
G1/4" |
|||||||
|
Piston rod thread |
Female thread |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
|||
|
Male thread |
M8 |
M10×1.25 |
M12×1.25 |
M16×1.5 |
M20×1.5 |
|||||
|
Cushion |
Rubber bumper |
|||||||||
|

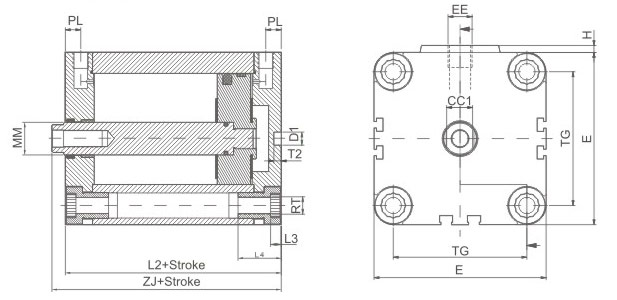

Bore size(mm) |
D1 |
E |
EE |
H |
L2 |
L3 |
L4 |
φMM |
PL |
RT |
T2 |
TG |
ZJ |
CC1 |
|
16 |
6 |
29 |
M5 |
1 |
38 |
3 |
16 |
8 |
8 |
M4 |
4 |
18 |
42.5 |
7 |
|
20 |
6 |
36 |
M5 |
1.5 |
38 |
4 |
18 |
10 |
8 |
M5 |
4 |
22 |
42.5 |
9 |
|
25 |
6 |
40 |
M5 |
1.5 |
39.5 |
4 |
18 |
10 |
8 |
M5 |
4 |
26 |
45 |
9 |
|
32 |
6 |
50 |
G1/8 |
2 |
44.5 |
5 |
20 |
12 |
8 |
M6 |
4 |
32 |
50.5 |
10 |
|
40 |
6 |
60 |
G1/8 |
2.5 |
45.5 |
5 |
20 |
12 |
8 |
M6 |
4 |
42 |
52 |
10 |
|
50 |
6 |
68 |
G1/8 |
3 |
45.5 |
6 |
20 |
16 |
8 |
M8 |
4 |
50 |
53 |
13 |
|
63 |
8 |
87 |
G1/8 |
4 |
50 |
8 |
25 |
16 |
8 |
M10 |
4 |
62 |
57.5 |
13 |
|
80 |
8 |
107 |
G1/8 |
4 |
56 |
8 |
25 |
20 |
8.5 |
M10 |
4 |
82 |
64 |
17 |
|
100 |
8 |
128 |
G1/4 |
5 |
66.5 |
8 |
25 |
35 |
10.5 |
M10 |
4 |
103 |
76.5 |
22 |
