XC Series F.R.L
SERIES: XC Series F.R.L
XC Series F.R.L
FEATURES
 Structure
|
Compact-Type
|
|
Material
|
AI-alloy, Brass, Nylon, NBR
|
|
Port Size
|
G1/4", G3/8", G1/2", G1"
|
|
Installation Type
|
Upright place board connection or wall installation
|
|
Working Temperature
|
5-60℃ (1MPa)
|
|
Surface Coat
|
Painted
|

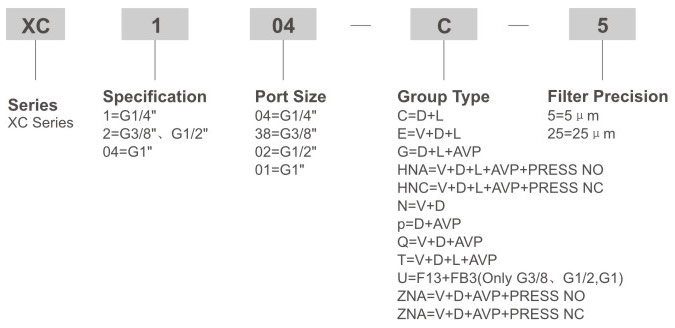

Ordering Code
Specification
| Structure | Compact-Type |
| Material | AI-alloy, Brass, Nylon, NBR |
| Port Size | G1/4", G3/8", G1/2", G1" |
| Installation Type | Upright place board connection or wall installation |
| Working Temperature | 5-60℃ (1MPa) |
| Surface Coat | Painted |
Other info
XC Series Filter,Reguator & Lubricator Combination Code
| D |
Regulator&Filter Combination 0-1 Mpa Semi-auto drain,fiIter precision 5 m or 25 m |
AVP | Eletricity control soft startvalve |
| PRESS | Pressure switch(NC or NO) | ||
| V | Two-position three-way separate valve | F13 | Filter auto drain(only G3/8,G1/2,G1)filter precision 5µm or 25µm |
| L | Lubricator | Fb3 | Gather Filter auto drain(only G3/8",G1/2",G1") |
