JMJ Series Mechanical Valve
SERIES: JMJ Series Mechanical Valve
JMJ Series Mechanical Valve
FEATURES
Port Size
G1/4"
Working Medium
Air
Temperature Range
0 60℃
Pressure Range
0~1MPa
Effective Section Area
25mm2
Lubrication
Not Necessary

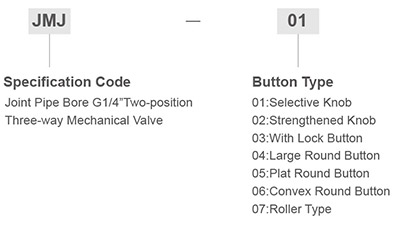

Ordering Code
Specification
Model
JMJ-01 02 03 04 05 06 07
Port Size
G1/4"
Working Medium
Air
Temperature Range
0 60℃
Pressure Range
0~1MPa
Effective Section Area
25mm2
Lubrication
Not Necessary

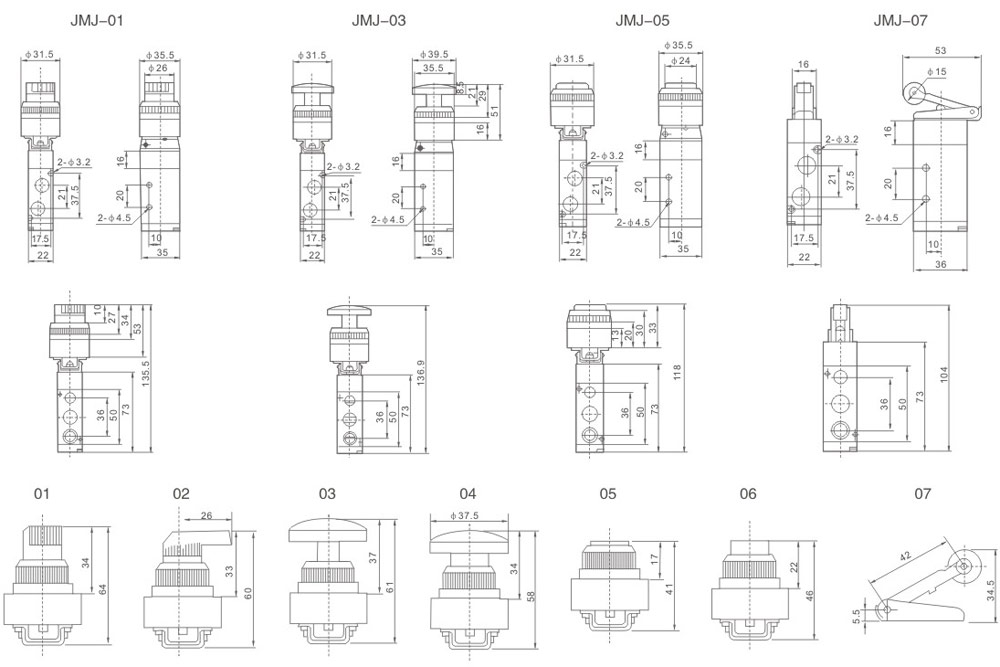

Overall Dimensions
