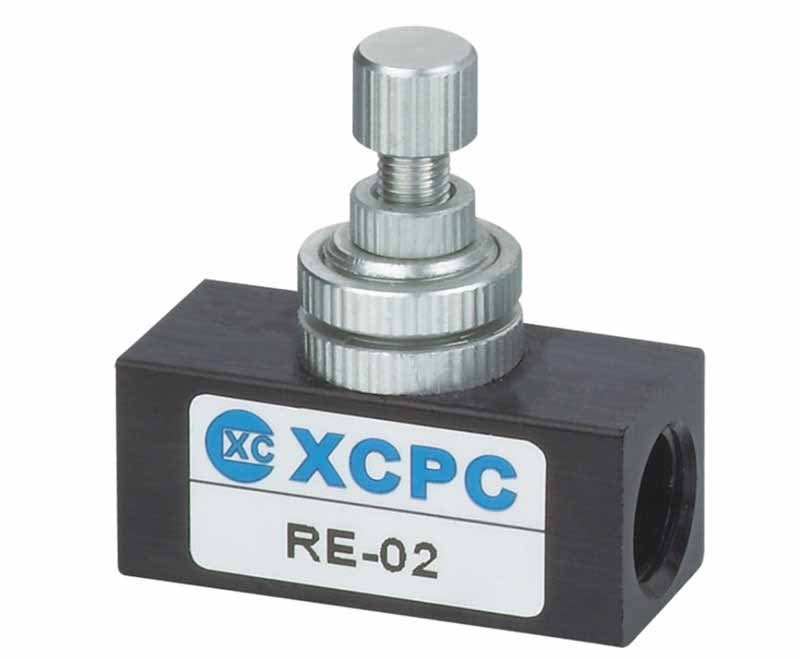

RE Series Flow control Valve
SERIES: RE Series Flow control Valve
RE Series Flow control Valve
FEATURES
 Working Medium
|
Air
|
|
Working-pressure Range
|
0~0.95MPa
|
|
Operating Temperature Range
|
0~60℃
|

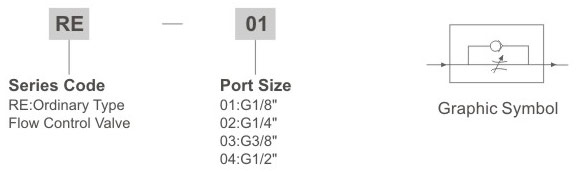

Ordering Code
Specification
|
Model
|
RE-01
|
RE-02
|
RE-03
|
RE-04
|
|
Port Size
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
|
Working Medium
|
Air
|
|||
|
Working-pressure Range
|
0~0.95MPa
|
|||
|
Operating Temperature Range
|
0~60℃
|
|||
Overall Dimensions
|
Model/Symbol
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
RE-01
|
45
|
19
|
43
|
50
|
Φ19
|
M14×1
|
G1/8
|
|
RE-02
|
45
|
19
|
43
|
50
|
Φ19
|
M14×1
|
G1/4
|
|
RE-03
|
55
|
25
|
55
|
62
|
Φ25
|
M18×1
|
G3/8
|
|
RE-04
|
55
|
25
|
55
|
62
|
Φ25
|
M18×1
|
G1/2
|
