4V/3V 100,4A/3A 100 Series
SERIES: 4V/3V ,4A/3A Solenoid/Pneumatic Control Valve
4V/3V 100,4A/3A 100 Series
FEATURES
Working Medium
40 Micron Filtered Air
Motion Pattern
Inner Guide Type
Working-Pressure
0.15~0.8MPa
Max.Pressure Resistance
1.2MPa
Operating Temperature
5~50℃
Voltage Range
±10%

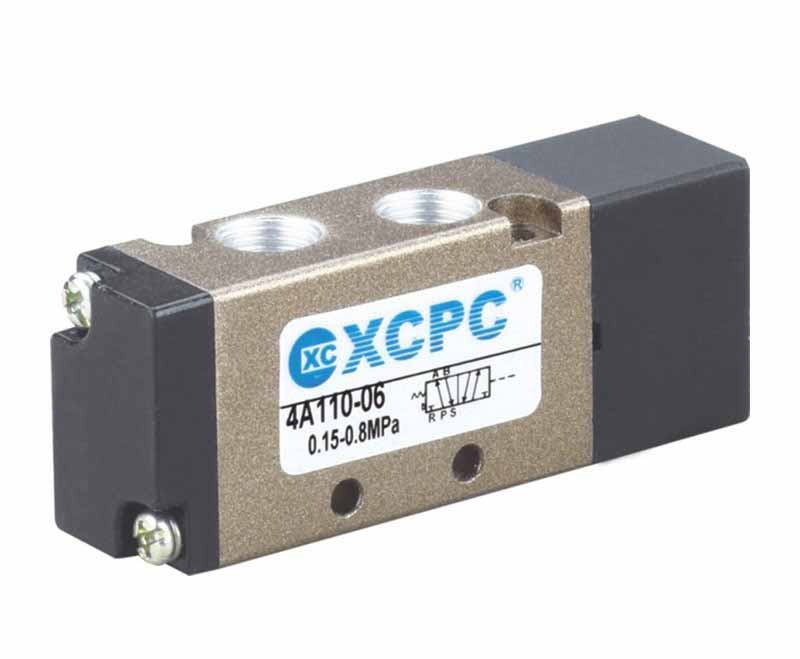

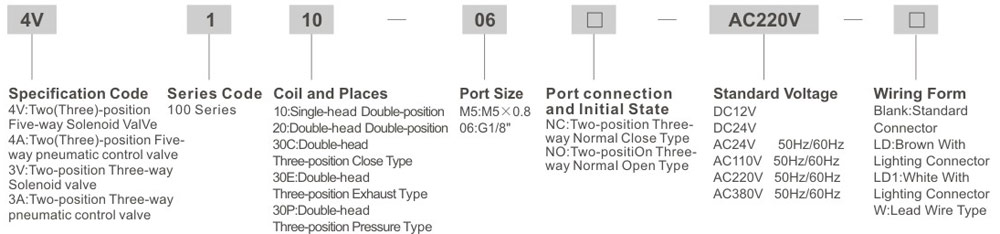

Ordering Code
Specification
Model
4V110-M5
4V120-M5
4V130C-M5
4V130E-M5
4V130P-M5
4V110-06
4V120-06
4V130C-06
4V130E-06
4V130P-06
4A110-M5
4A120-M5
4A130C-M5
4A130E-M5
4A130P-M5
4A110-06
4A120-06
4A130C-06
4A130E-06
4A130P-06
Position and Way NO.
Two-position Five-way
Three-position Five-way
Two-position Five-way
Three-position Five-way
Effective Sectional Area
10mm²(CV=0.56)
7mm²(CV=0.40)
12mm²(CV=0.67)
9mm²(CV=0.5)


Model
3V110-M5
3V120-M5
3A110-M5
3A120-M5
3V110-06
3V120-06
3A110-06
3A120-06
Position and Way NO.
Two-position Five-way
Two-position Five-way
Effective Sectional Area
10mm²(CV=0.56)
12mm²(CV=0.67)
Joint Pipe Bore
Air Inlet=Air Outlet=Exhaust=M5x0.8
Air Inlet=Air Outlet=Exhaust=G1/8"
Working Medium
40 Micron Filtered Air
Motion Pattern
Inner Guide Type
Working-Pressure
0.15~0.8MPa
Max.Pressure Resistance
1.2MPa
Operating Temperature
5~50℃
Voltage Range
±10%
Power Consumption
AC:2.5VA DC:2.5W
Insulation & Protection Class
F CIass.IP65
Wiring Form
Lead Wire or Connector type
Highest Action Frequency
5 Cycle / Second
Shortest Excitation time
0.05 Second

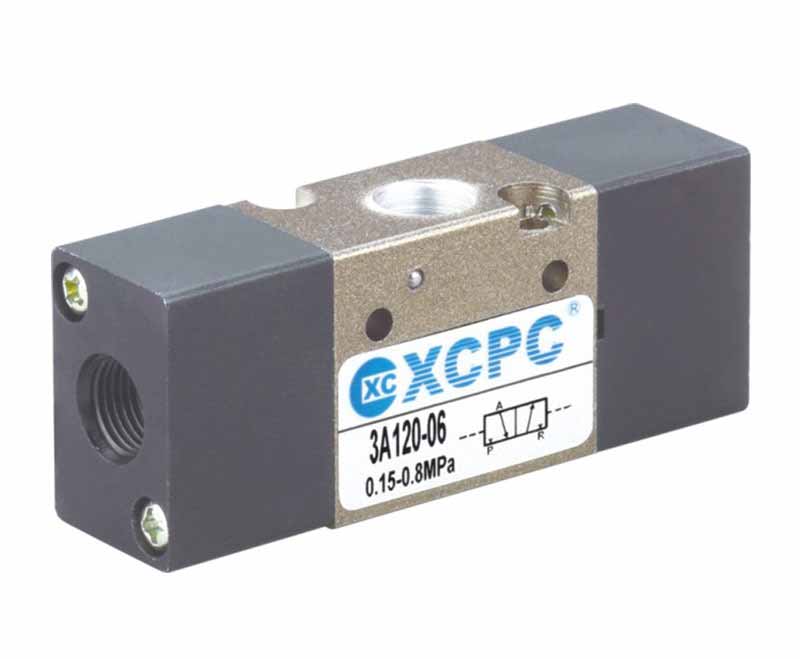

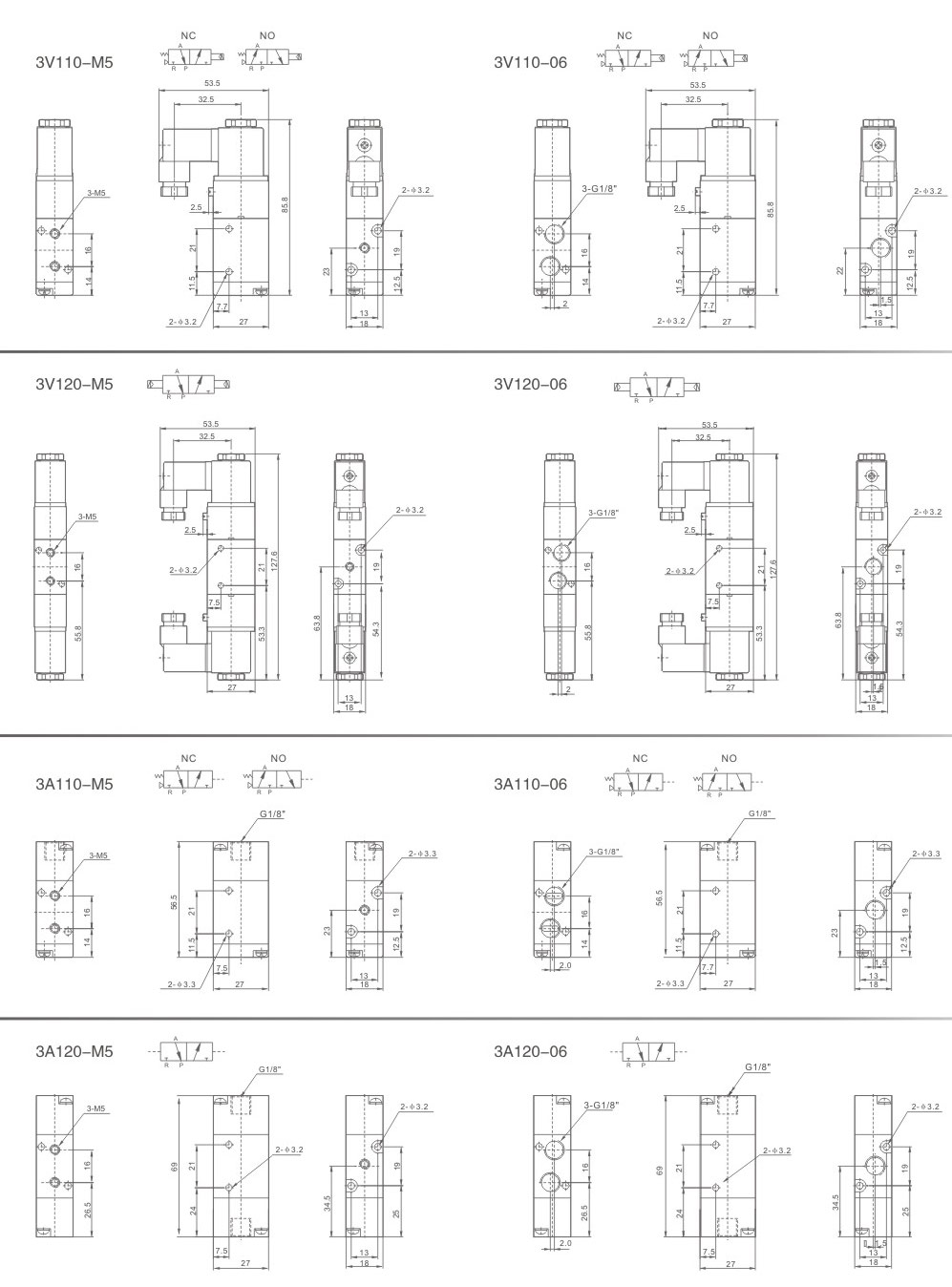

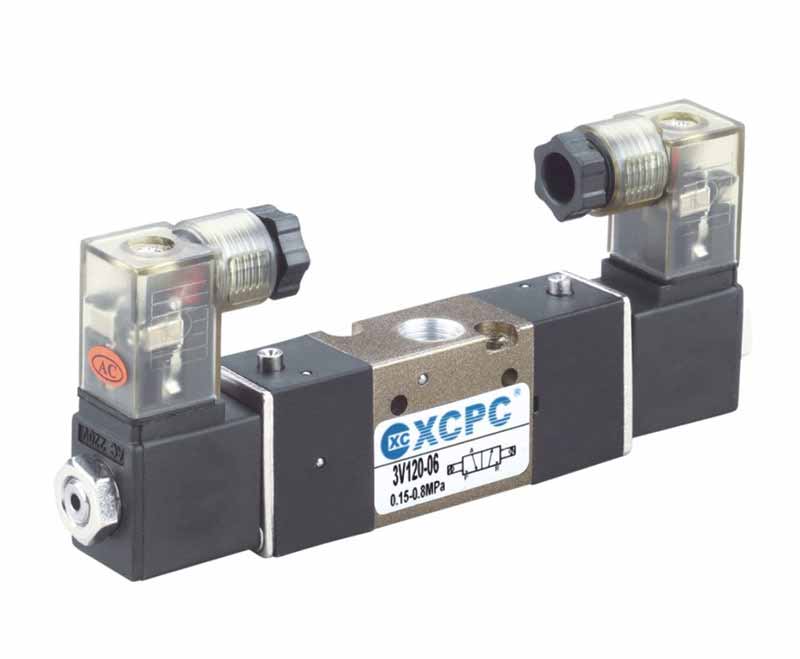

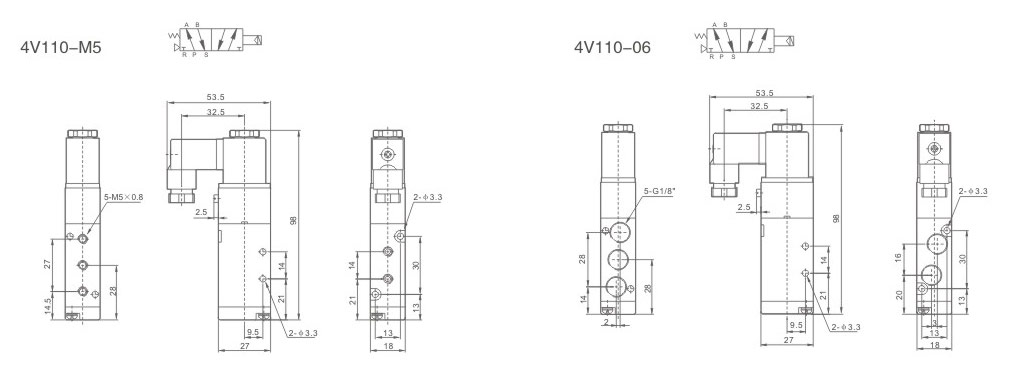

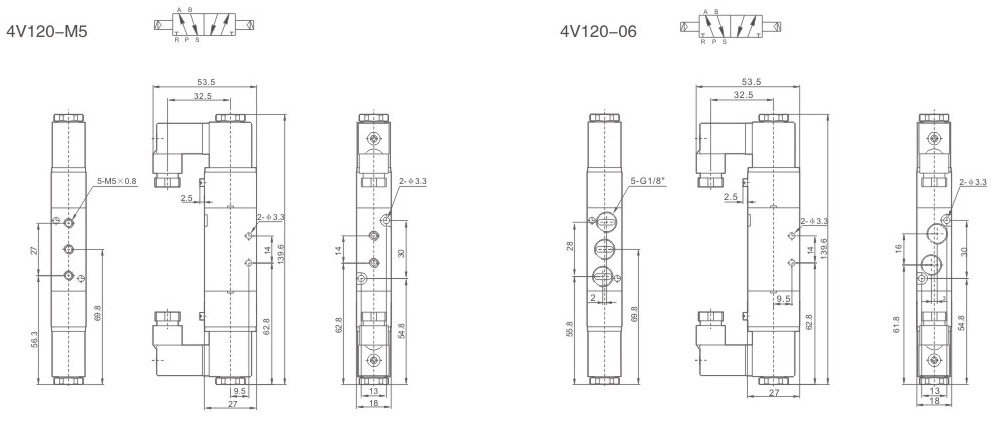

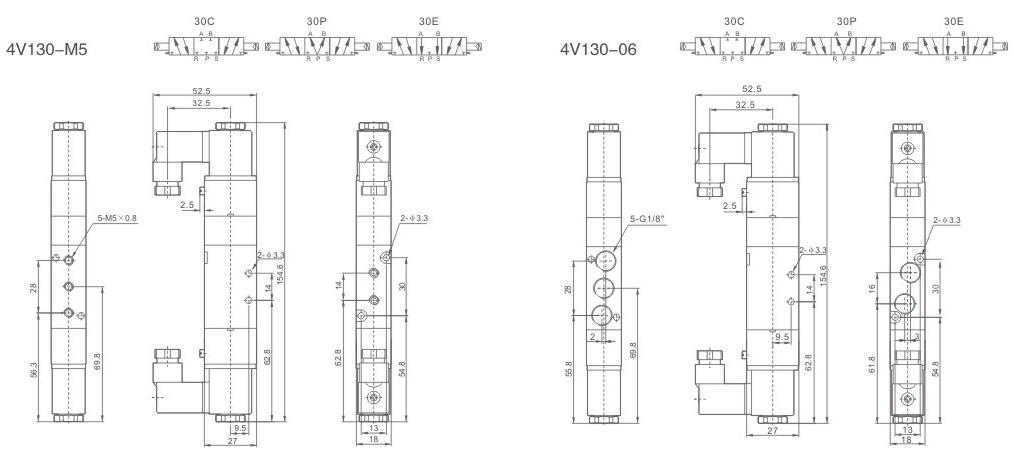

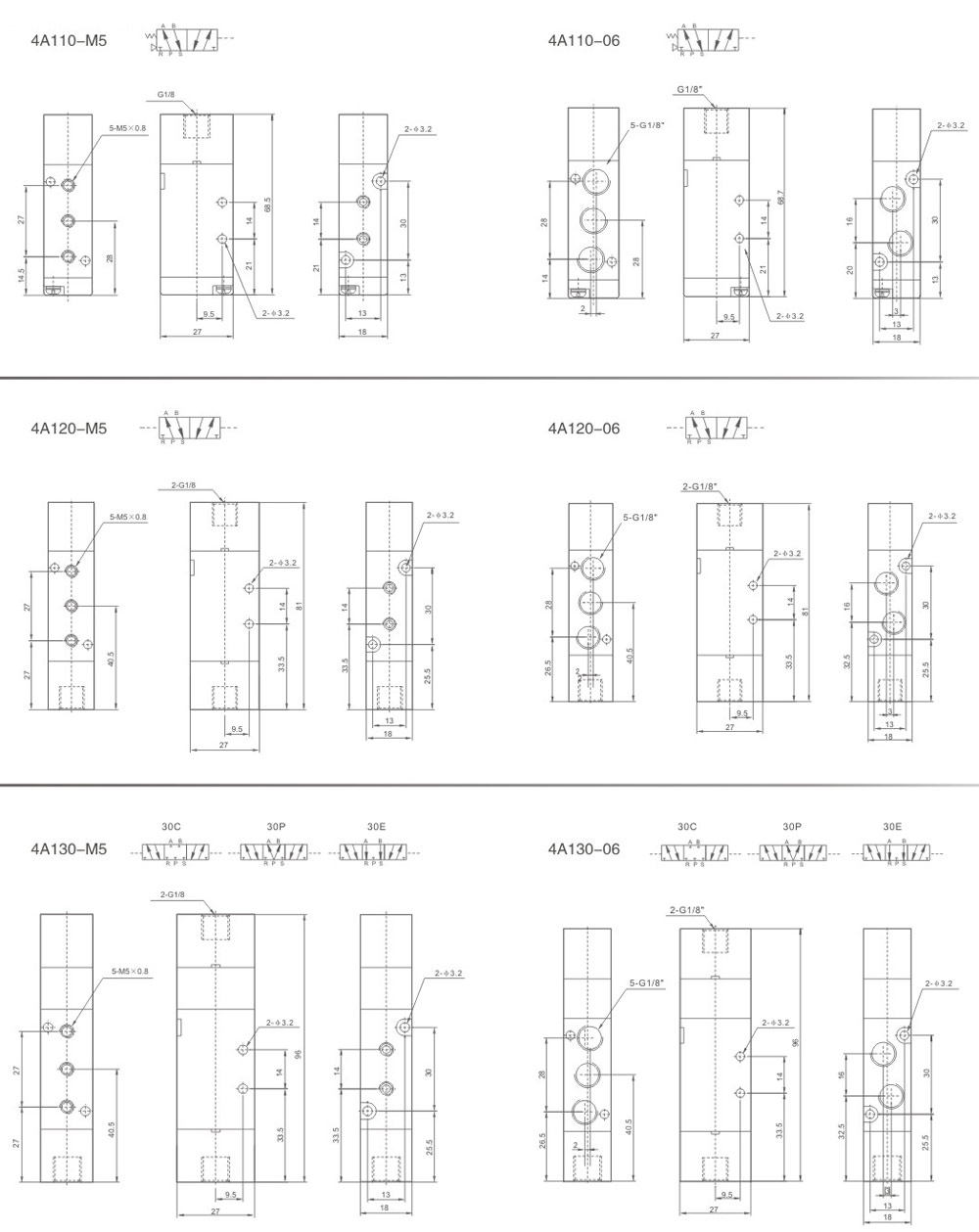

Overall Dimensions


Other info

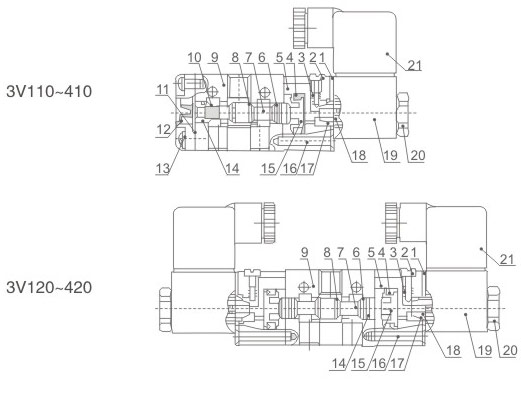

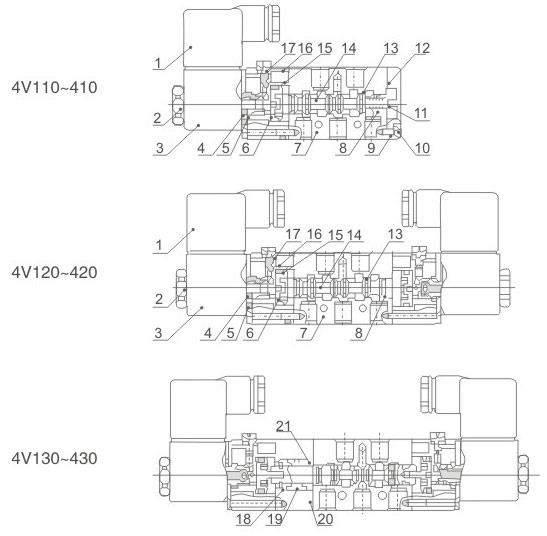

NO
Designation
NO
Designation
NO
Designation
NO
Designation
NO
Designation
NO
Designation
NO
Designation
1
Connector
4
Active Amature
7
Body
10
Screw
13
O-Ring
16
Spring
19
Spring
2
Nut
5
Steel Part
8
Wearing
11
Spring
14
Spool
17
Pin
20
Side Cover
3
Coil
6
Piston
9
End Cap
12
Seal ring
15
O-Ring
18
Spring Seat
21
Spring Seat

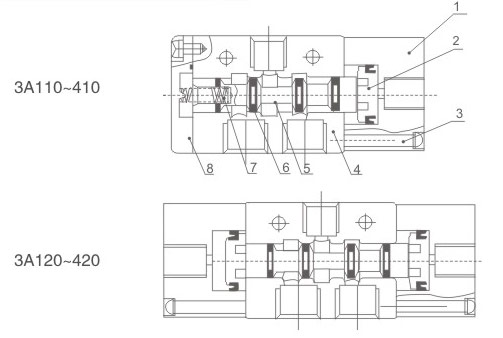

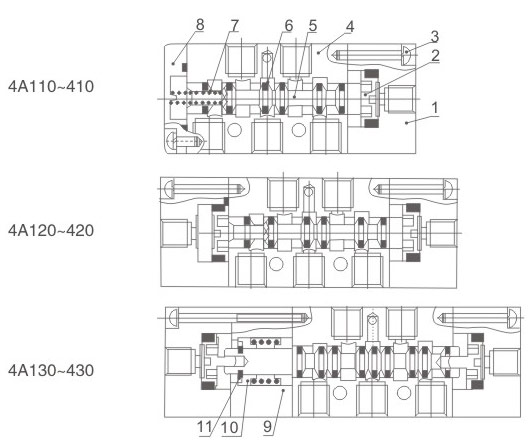

NO
Designation
NO
Designation
NO
Designation
NO
Designation
1
Air control cover
4
Valve body
7
Spring
10
Spring Seat
2
Piston
5
Spool
8
Rear cover
11
C-type buckle
3
Screw
6
O-Ring
9
Back seat


NO
Designation
NO
Designation
NO
Designation
NO
Designation
NO
Designation
NO
Designation
NO
Designation
1
Washer
4
O-Ring
7
Spool
10
Spring
13
Screw
16
Screw
19
Coil
2
Pin
5
Body
8
O-Ring
11
Seal
14
Wearing
17
O-Ring
20
Nut
3
Spring
6
O-Ring
9
Body
12
End Cap
15
Piston
18
Active Amature
21
Connector

NO
Designation
NO
Designation
NO
Designation
1
Air control cover
4
Valve body
7
Spring
2
Piston
5
Spool
8
Rear cover
3
Screw
6
O-Ring
