XOC (Three Elements)
SERIES: XO Series F.R.L
XOC (Three Elements)
FEATURES

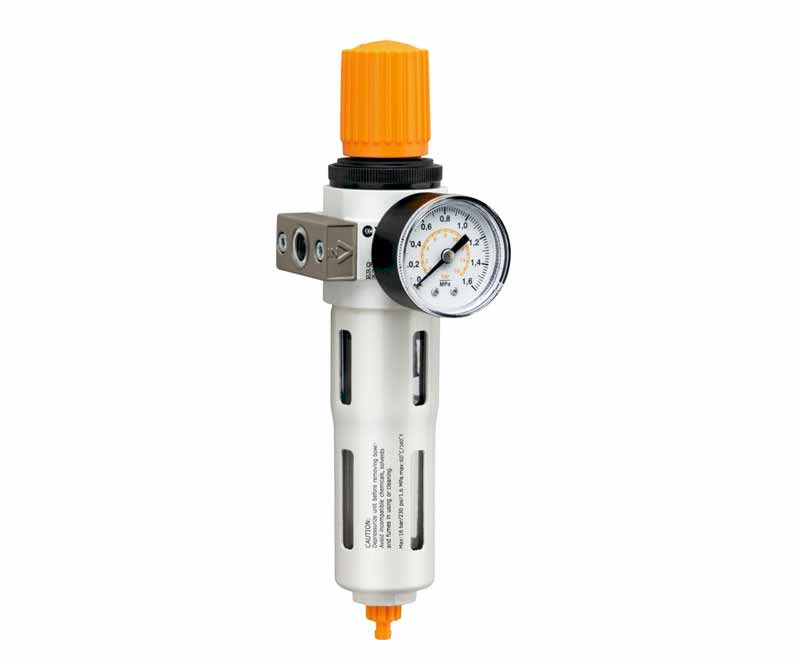

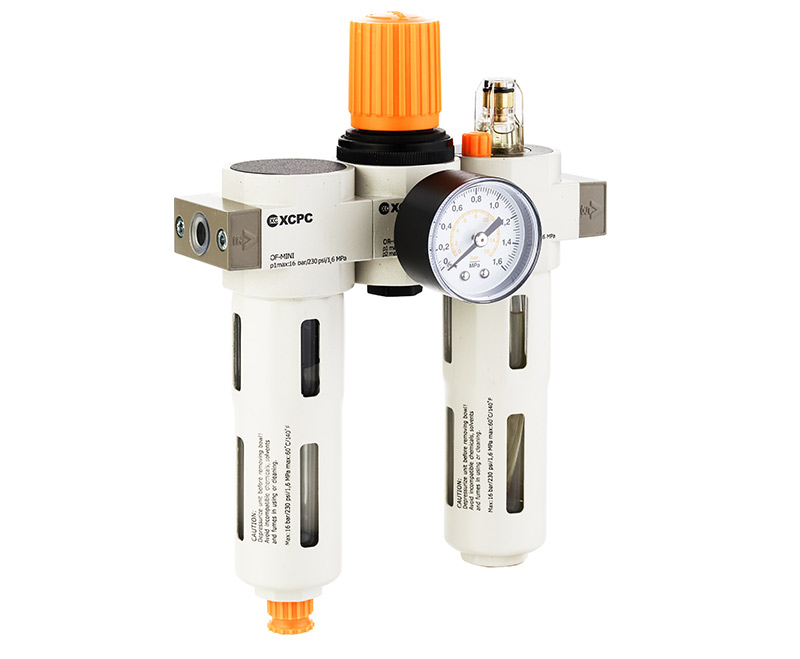

The XOC consisted of XOFR and XOL,each unit can be ordered separately.

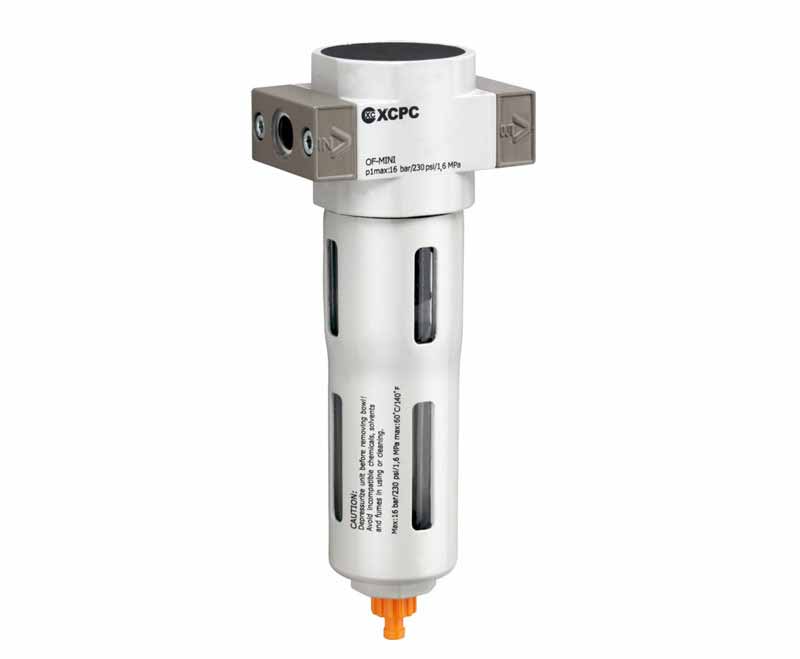

The XOF with water separator cleans the compressed air of fluid oil,condensation and dirt.
Particles.For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.

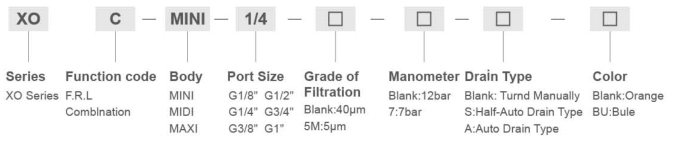

Ordering Code

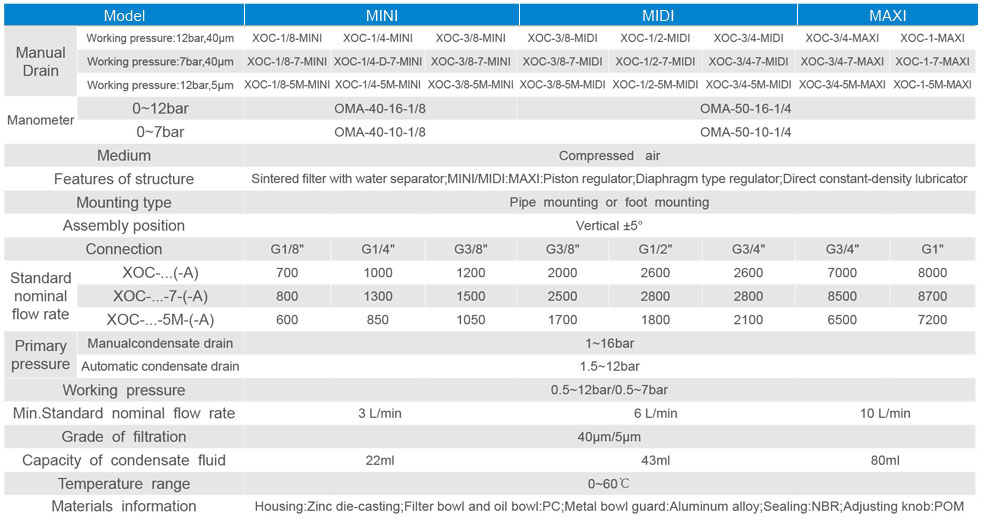

Specification
The XOC consisted of XOFR and XOL,each unit can be ordered separately.
The XOF with water separator cleans the compressed air of fluid oil,condensation and dirt.
Particles.For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.

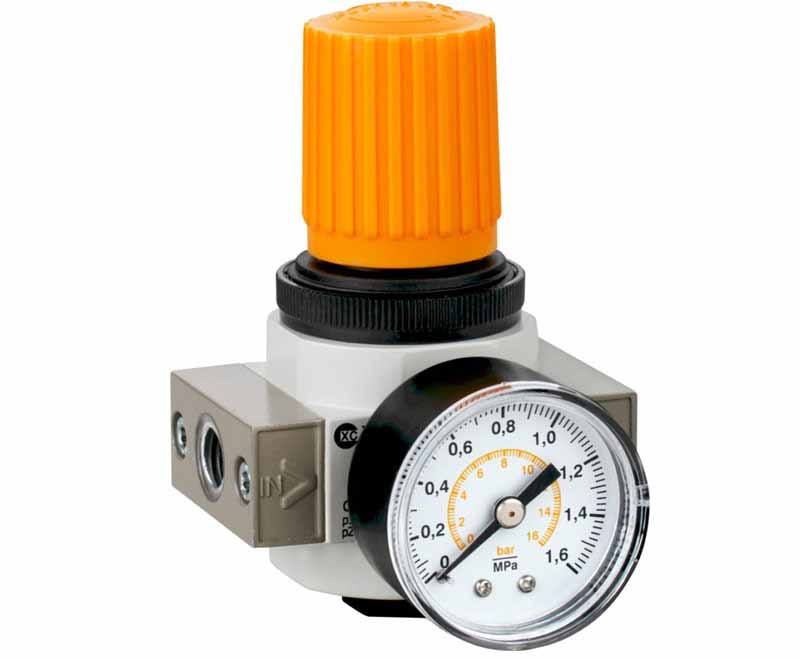

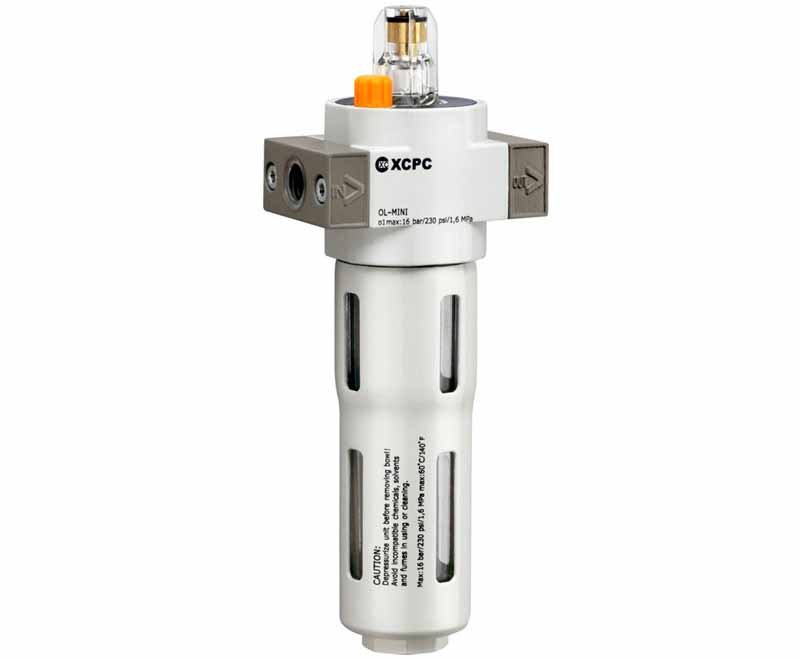

The XOR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.The proportional lubricator adds a regulated quantity of oil to the filtered air.The oil-mist content proportional to the flow and oil can be added during operation.

The oil drop rate is controlled by the adjustable bolt.Normally,1to 12 drops/1000L of the air is sufficient

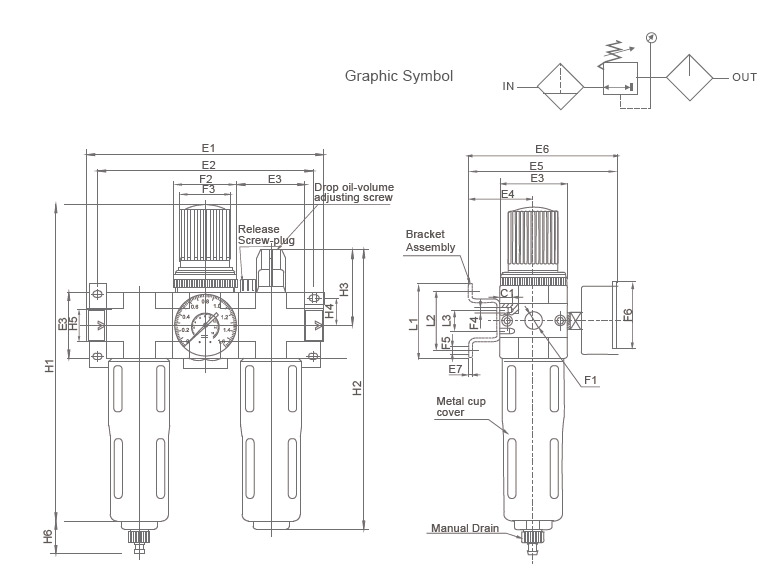

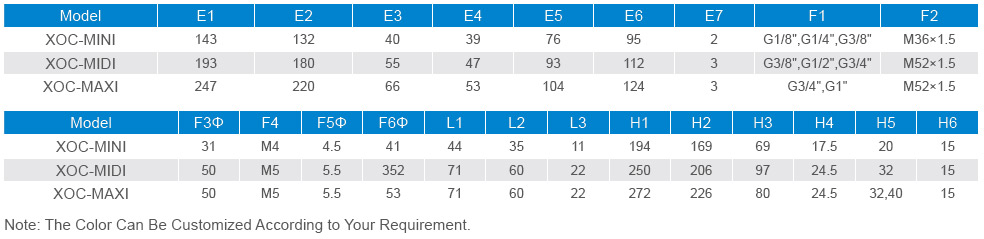

Overall Dimensions


Other info
