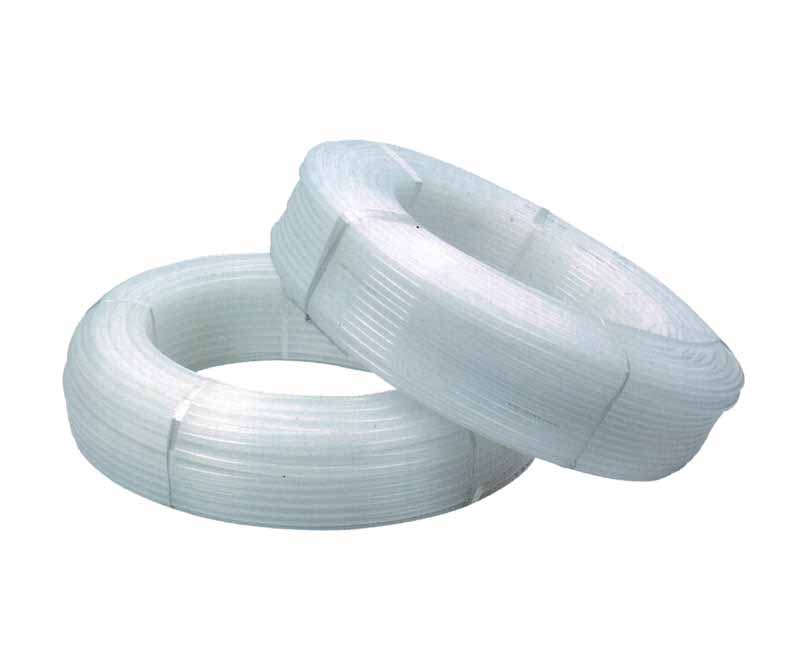

Polyethylene Tube(PE tube)
SERIES: Polyethylene Tube(PE tube)
Polyethylene Tube(PE tube)
FEATURES
 Pneumatic system, air toolss
|
|
Vacuum
|
|
Automation
|
|
Plant Imstrumentation
|
|
Paint supply Lines
|
|
Construction applications
|
|
Motion control devices
|
Ordering Code
Specification
|
Model
|
NY
|
|
Working Medium
|
Compressed Air
|
|
Working-Pressure
|
0~1.0MPa
|
|
Sevice Temperature range
|
-20~60℃
|
|
Durometer
|
80-92 Shore A
|
Other info
|
Model |
O.D(mm) |
I.D(mm) |
Thickness(mm) |
Lenth M/Roll |
Min.burst pressure bar at 20℃(bar) |
Max.working pressure at 20℃(bar) |
|
PE 4X2.5 |
4 |
2.5 |
0.75 |
200 |
24 |
8 |
|
PE 6X4 |
6 |
4 |
1.00 |
200 |
24 |
8 |
|
PE 8X5 |
8 |
5 |
1.50 |
100 |
24 |
8 |
|
PE 10X7.5 |
10 |
7.5 |
1.25 |
100 |
24 |
8 |
|
PE 12X9 |
12 |
9 |
1.50 |
100 |
24 |
8 |
|
PE 1X4 |
6.35 |
4 |
1.175 |
200 |
24 |
8 |
PE 3X8 |
9.52 |
6.35 |
1.585 |
100 |
24 |
8 |
PE 1X2 |
12.7 |
8.46 |
2.12 |
100 |
24 |
8 |
|
Color
|
Tranaparent
|
Black
|
Orange
|
Blue
|
Dark blue
|
Sky blue
|
Clear blue
|
Gren
|
Red
|
Yellow
|
Grey
|
Milk white
|
|
Code
|
C
|
B
|
O
|
BU
|
DB
|
SB
|
CB
|
GN
|
RD
|
YW
|
GY
|
MW
|
|
Supplid
|
●
|
●
|
●
|
●
|
◆
|
◆
|
◆
|
◆
|
◆
|
◆
|
◆
|
◆
|
