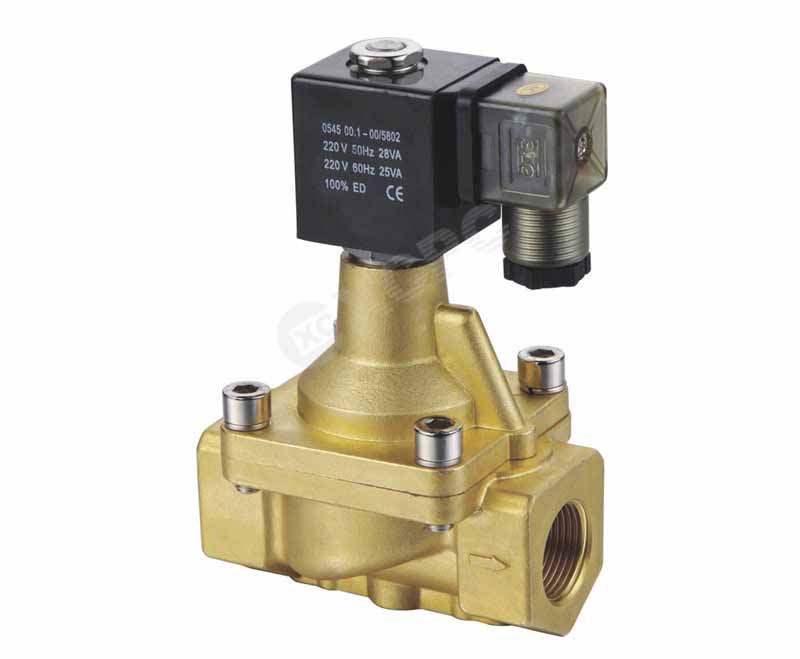

PU225 Steam Type Solenoid Valve
SERIES: PU225 Steam Type Solenoid Valve
PU225 Steam Type Solenoid Valve
FEATURES
 Working Medium
|
Air.Water.Oil
|
|
Motion Pattern
|
Guide Type
|
|
Type
|
Normal Close Type
|
|
Operation Fluid Viscosity
|
50 CST(Below)
|
|
Working-Pressure
|
0.05~1.0MPa
|
|
Max. Pressure Resistance
|
1.5MPa
|
Ordering Code
Specification
|
Model
|
SPU225-03S
|
SPU225-04S
|
SPU225-06S
|
SPU225-08S
|
|
Working Medium
|
Air.Water.Oil
|
|||
|
Motion Pattern
|
Guide Type
|
|||
|
Type
|
Normal Close Type
|
|||
|
Aperture of Flow Rate(mm)
|
13
|
13
|
25
|
25
|
|
CV Value
|
4.50
|
4.50
|
12.00
|
12.00
|
|
Port Size
|
G3/8"
|
G1/2"
|
G3/4"
|
G1"
|
|
Operation Fluid Viscosity
|
50 CST(Below)
|
|||
|
Working-Pressure
|
0.05~1.0MPa
|
|||
|
Max. Pressure Resistance
|
1.5MPa
|
|||
|
Operating Temperature Range
|
-5~+80℃
|
|||

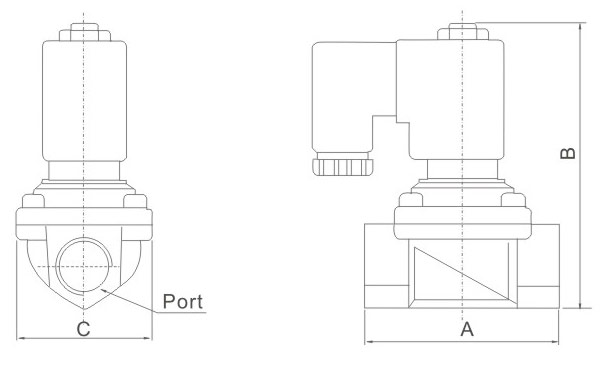

Overall Dimensions
|
Model
|
Bore
|
A
|
B
|
C
|
|
PU225-03S
|
G3/8"
|
65
|
121
|
48
|
|
PU225-04S
|
G1/2"
|
65
|
121
|
48
|
|
PU225-06S
|
G3/4"
|
97
|
152
|
70
|
|
PU225-08S
|
G1"
|
97
|
152
|
70
|
