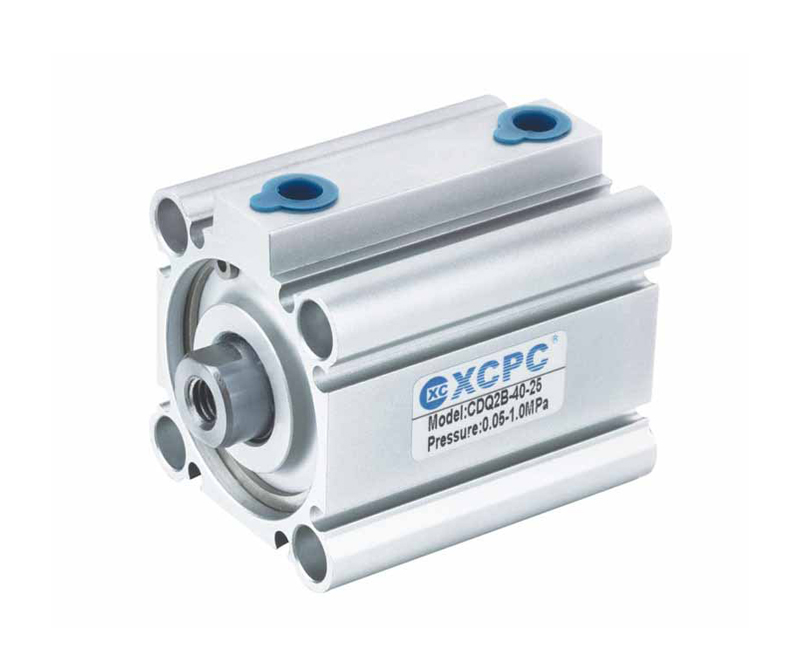

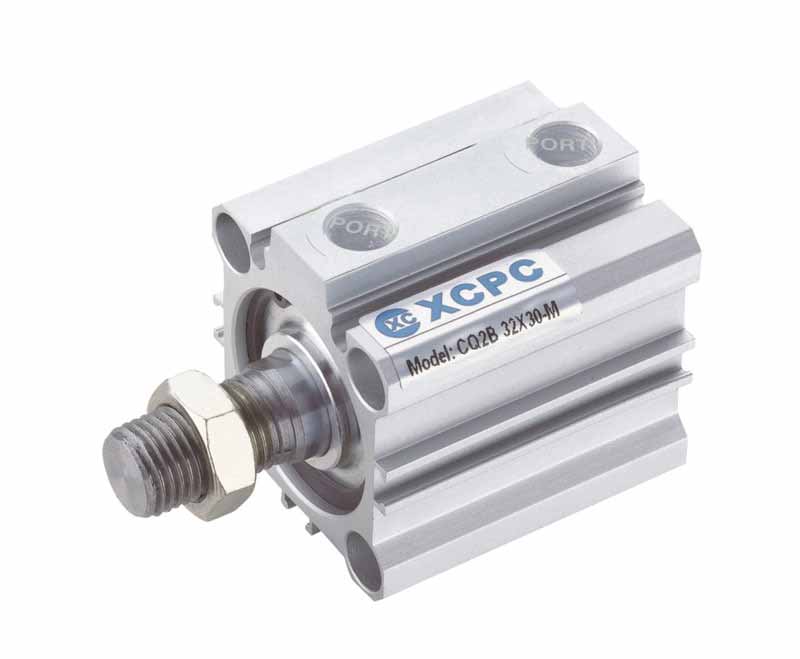

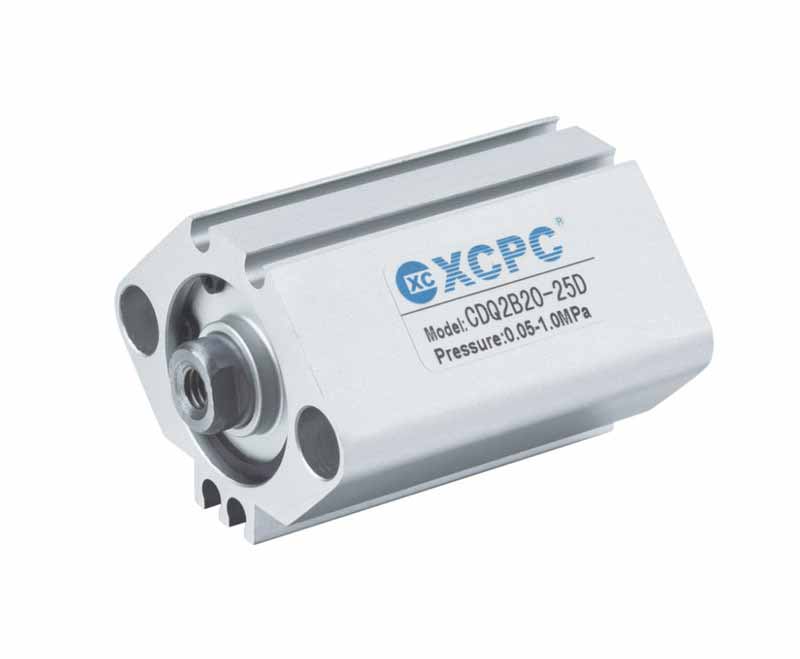

CQ2 Series Compact Cylinder
SERIES: CQ2 Series Compact Cylinder
CQ2 Series Compact Cylinder
FEATURES

Working Medium

Air

Ensured Pressure Resistance

15.3kgf/cm2(1.5Mpa)

Max.pressure

10.2kgf/cm2(1.0Mpa)

Environment and fluid temp

5~+60℃

Buffering

NO

Margin of Stroke Error(mm)

+1.0

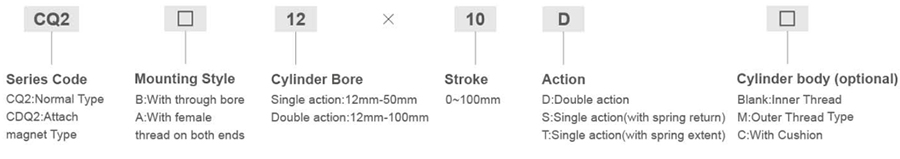

Ordering Code
Specification

Bore(mm)

12

16

20

25

32

40

50

63

80

100

Working Medium

Air

Motion Pattern

Double action/Single Action Extrusion type/Single Action Drawing-in Type

Ensured Pressure Resistance

15.3kgf/cm2(1.5Mpa)

Max.pressure

10.2kgf/cm2(1.0Mpa)

Environment and fluid temp

5~+60℃

Thread Type

Inner Thread(Standard)/Outer Thread(Optional)

Buffering

NO

Margin of Stroke Error(mm)

+1.0

Installation

Through Hole (Standard),Inner size on the two sides(Optional)

Port size

M5×0.8

G1/8"

G1/4"

G3/8"

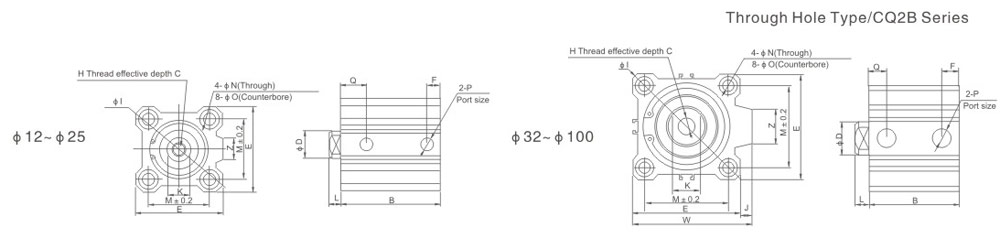

Overall Dimensions

Model

Stroke range (mm)

B

ΦD

E

F

H

C

ΦI

J

K

L

M

ΦN

ΦO

P

Q

W

Z

CQ2B12-□D

5~30

17+st

6

25

5

M3×0.5

6

32

-

5

3.5

15.5

3.5

6.5/depth 3.5

M5×0.8

7.5

-

-

CQ2B16-□D

5~30

18.5+st

8

29

5.5

M4×0.7

8

38

-

6

3.5

20

3.5

6.5/depth 3.5

M5×0.8

8

-

10

CQ2B20-□D

5~50

19.5+st

10

36

5.5

M5×0.8

7

47

-

8

4.5

25.5

5.5

9/depth 7

M5×0.8

9

-

10

CQ2B25-□D

5~50

22.5+st

12

40

5.5

M6×1.0

12

52

-

10

5

28

5.5

9/depth 7

M5×0.8

11

-

10

CQ2B32-□D

5

23+st

16

45

5.5

M8×1.25

13

60

4.5

14

7

34

5.5

9/depth 7

M5×0.8

11.5

49.5

18

10~50
7.5
1/8

CQ2B40-□D

5~50

29.5+st

16

52

8

M8×1.25

13

69

5

14

7

40

5.5

9/depth 7

1/8

11

57

18

CQ2B50-□D

10~50

30.5+st

20

64

10.5

M10×1.5

15

86

7

17

8

50

6.6

11/depth 8

1/4

10.5

71

22

CQ2B63-□D
10~50
36+st
20
77
10.5
M10×1.5
15
103
7
17
8
60
9
14/depth 10.5
1/4
15
84
22
CQ2B80-□D
10~50
43.5+st
25
98
12.5
M16×2.0
21
132
6
22
10
77
11
17.5/depth 13.5
3/8
16
104
26
CQ2B100-□D
10~50
53+st
30
117
13
M20×2.5
27
156
6.5
27
12
94
11
17.5/depth 13.5
3/8
23
123.5
26

Model

Stroke(mm)

B

F

P

Q

32

75,100

33

7.5

1/8

10.5

40

75,100

39.5

8

1/8

11

50

75,100

40.5

10.5

1/4

10.5

63

75,100

46

10.5

1/4

15

80

75,100

53.5

12.5

3/8

16

100

75,100

63

13

3/8

23

Model

B

ΦD

E

F

H

C

ΦI

J

K

L

M

ΦN

ΦO

P

Q

W

Z

5st

10st

20st

5st

10st

5st

10st

20st

5st 1

0st

CQ2B12-□S

22

27

-

6

25

5

5

M3×0.5

6

32

-

5

3.5

15.5

3.5

6.5/depth 3.5

M5×0.8

-

7.5

7.5

-

-

CQ2B16-□S

23.5

28.5

-

8

29

5.5

5.5

M4×0.7

8

38

-

6

3.5

20

3.5

6.5/depth 3.5

M5×0.8

-

8

8

-

10

CQ2B20-□S

24.5

29.5

-

10

36

5.5

5.5

M5×0.8

7

47

-

8

4.5

25.5

5.5

9/depth 7

M5×0.8

-

9

9

-

10

CQ2B25-□S

27.5

32.5

-

12

40

5.5

5.5

M6×1.0

12

52

-

10

5

28

5.5

9/depth 7

M5×0.8

-

11

11

-

10

CQ2B32-□S

28

33

-

16

45

5.5

7.5

M8×1.25

13

60

4.5

14

7

34

5.5

9/depth 7

M5×0.8

1/8

-

11.5

11.5

49.5

18

CQ2B40-□S

34.5

39.5

-

16

52

8

8

M8×1.25

13

69

5

14

7

40

5.5

9/depth 7

1/8

-

11

11

57

18

CQ2B50-□S

-

40.5

50.5

20

64

10.5

10.5

M10×1.5

15

86

7

17

8

50

6.6

11/depth 8

-

1/4

10.5

10.5

71

22

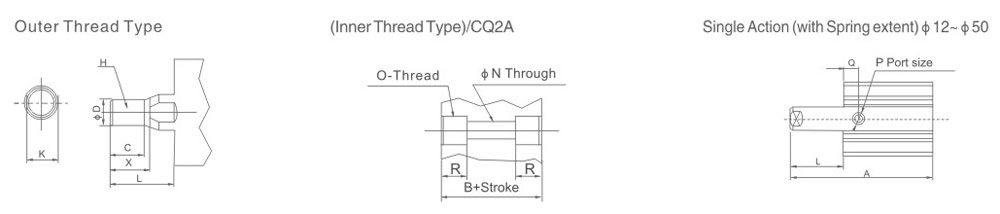

Outer-Thread-Type

Bore(mm)

C

X

ΦD

H

L

K

12

9

10.5

6

M5×0.8

14

5

16

10

12

8

M6×1.0

15.5

6

20

12

14

10

M8×1.25

18.5

8

25

15

17.5

12

M10×1.25

22.5

10

32

20.5

23.5

16

M14×1.5

28.5

14

40

20.5

23.5

16

M14×1.5

28.5

14

50

26

28.5

20

M18×1.5

33.5

17

63

26

28.5

20

M18×1.5

33.5

17

80

32.5

35.5

25

M22×1.5

43.5

22

100

32.5

35.5

30

M26×1.5

43.5

27

Inner-Thread-Type

Bore (mm)

O

R

12

M4×0.7

7

16

M4×0.7

7

20

M6×1.0

10

25

M6×1.0

10

32

M6×1.0

10

40

M6×1.0

10

50

M8×1.25

14

63

M10×1.5

18

80

M12×1.75

22

100

M12×1.75

22

Single-Action(with-Spring-extent)

Bore (mm)

A

L

5st

10st

20st

5st

10st

20st

12

30.5

40.5

-
