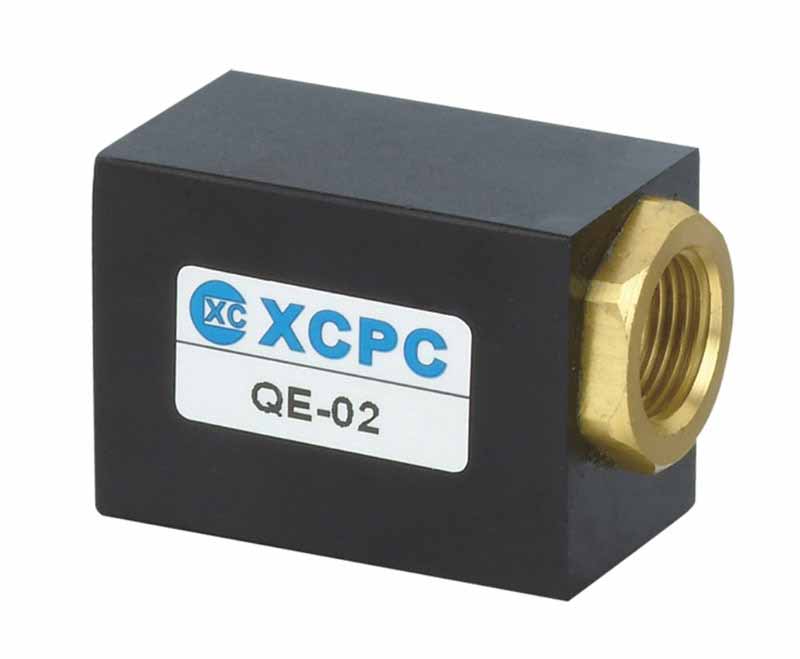

QE Series Quick Exhaust Valve
SERIES: QE Series Quick Exhaust Valve
QE Series Quick Exhaust Valve
FEATURES
 Working Medium
|
Air
|
|
Working Pressure Range
|
0~1.0MPa
|
|
Operating Temperature Range
|
0~60℃
|

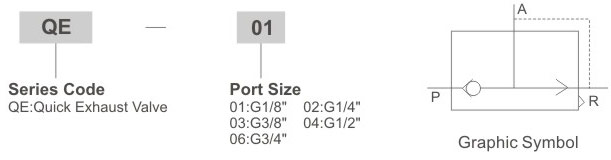

Ordering Code
Specification
|
Model
|
QE-01
|
QE-02
|
QE-03
|
QE-04
|
QE-06
|
|
Port Size
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
G3/4"
|
|
Effective Sectional Area
|
16mm2
|
27.5mm2
|
38mm2
|
71mm2
|
72.5mm2
|
|
Working Medium
|
Air
|
||||
|
Working Pressure Range
|
0~1.0MPa
|
||||
|
Operating Temperature Range
|
0~60℃
|
||||
Overall Dimensions
|
Model/Symbol
|
Bore
|
L
|
W
|
H
|
A
|
B
|
C
|
D
|
|
QE-01
|
G1/8”
|
46
|
20
|
32
|
30
|
4.3
|
27
|
40
|
|
QE-02
|
G1/4”
|
62
|
25
|
40
|
39
|
5.6
|
33.5
|
55
|
|
QE-03
|
G3/8”
|
62
|
25
|
40
|
39
|
5.6
|
33.5
|
55
|
|
QE-04
|
G1/2”
|
98
|
38
|
64
|
60
|
8.5
|
51
|
90
|
|
QE-06
|
G3/4”
|
98
|
38
|
64
|
60
|
8.5
|
51
|
90
|
