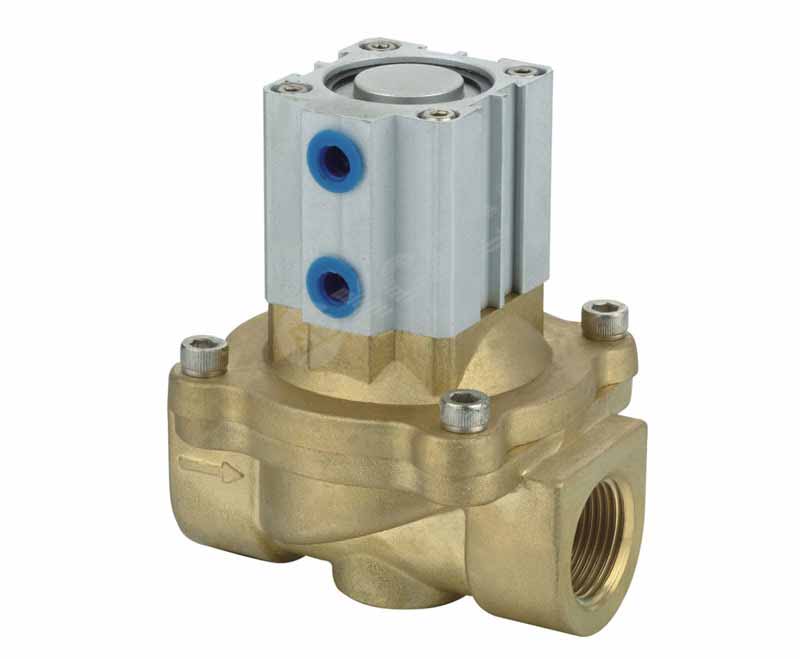

2Q Series Air Control Valve
SERIES: 2Q Series Air Control Valve
2Q Series Air Control Valve
FEATURES
 Working Medium
|
Air, Water, Oil, Gas
|
|
Motion Pattern
|
Direct Drive Type
|
|
Working Pressure Rang
|
0~0.7MPa
|
|
Max. Pressure Resistance
|
1.05MPa
|
|
Control Pressure Rang
|
0.3~0.6MPa
|
|
Operating Temperature Rang
|
-5~+100℃
|

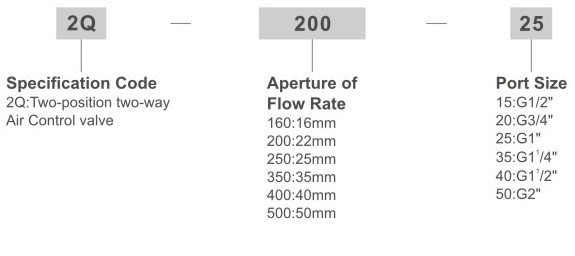

Ordering Code
Specification
|
Model
|
2Q160-15
|
2Q200-20
|
2Q250-25
|
2Q350-40
|
2Q400-40
|
2Q500-50
|
|
Working Medium
|
Air, Water, Oil, Gas
|
|||||
|
Motion Pattern
|
Direct Drive Type
|
|||||
|
Working Pressure Rang
|
0~0.7MPa
|
|||||
|
Max. Pressure Resistance
|
1.05MPa
|
|||||
|
Control Pressure Rang
|
0.3~0.6MPa
|
|||||
|
(mm)Aperture of Flow Rate
|
16
|
20
|
25
|
35
|
40
|
50
|
|
CV Value
|
4.8
|
12
|
7.6
|
24
|
29
|
48
|
|
Joint Pipe Bore
|
G1/2″
|
G3/4″
|
G1″
|
G1-1/4″
|
G1-1/2″
|
G2″
|
|
Operating Temperature Rang
|
-5~+100℃
|
|||||
|
Material of Body
|
Brass
|
|||||
|
Material of Oil Seal
|
PTFE
|
|||||
|
Operation Fluid Viscosity
|
50 CST(Below)
|
|||||
|
Control Joint Pipe Bore
|
2-M5
|
2-G1/8″
|
2-G1/8″
|
2-G1/4″
|
2-G1/4″
|
2-G1/4″
|

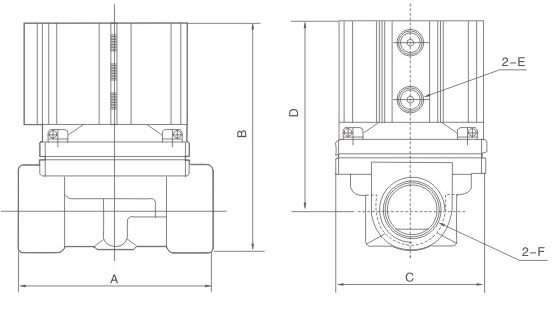

Overall Dimensions
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
|
2Q160-15
|
67
|
89
|
57
|
75
|
M5
|
G1/2″
|
|
2Q200-20
|
99
|
116
|
57
|
95
|
G1/8″
|
G3/4″
|
|
2Q250-25
|
99
|
116
|
57
|
95
|
G1/8″
|
G1″
|
|
2Q350-35
|
127
|
123
|
93
|
97
|
G1/4″
|
G1 1/4″
|
|
2Q400-40
|
123
|
146
|
95
|
116
|
G1/4″
|
G1 1/2″
|
|
2Q500-50
|
170
|
155
|
118
|
114
|
G1/4″
|
G2″
|
