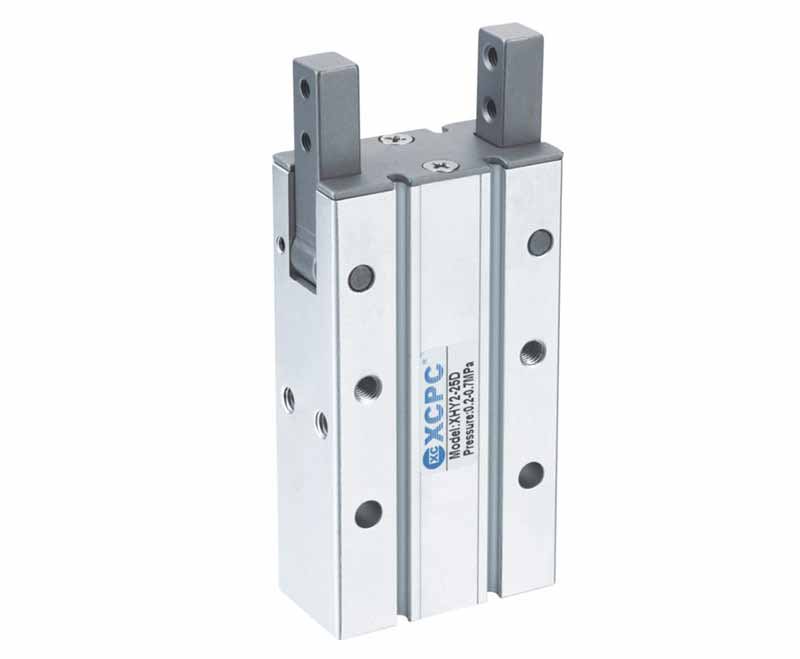

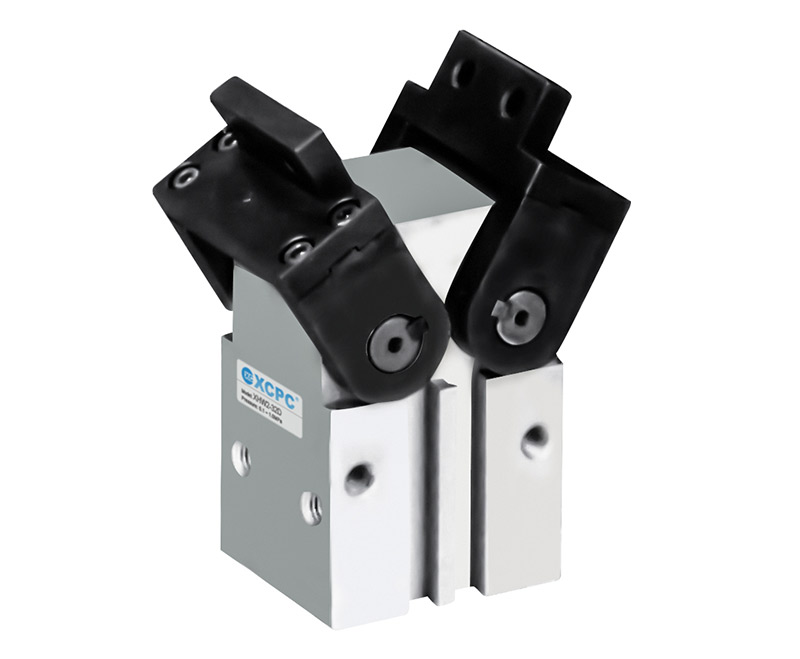

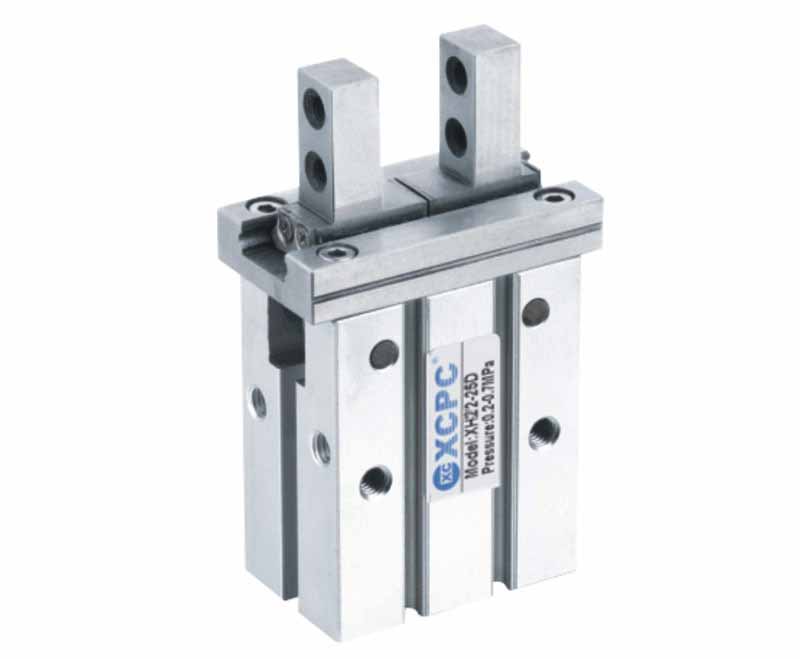

XHZ/XHY Series Style Air Gripper
SERIES: XH Series Style Air Gripper
XHZ/XHY Series Style Air Gripper
FEATURES

Fluid

Air

Motion Pattern

Double acting,Double acting with spring loaded,Single acting(Spring extend)

Max.pressure MPa

0.7MPa

Ambient and fluid temperature

-10-60℃

*Lubrication

Not required

Port Size

M3×0.8

M5×0.8

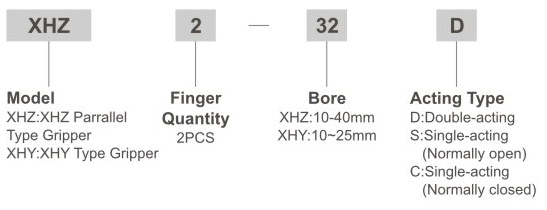

Ordering Code
Specification

Bore(mm)

10

16

20

25

32

40

Fluid

Air

Motion Pattern

Double acting,Double acting with spring loaded,Single acting(Spring extend)

Max.pressure MPa

0.7MPa

Max.pressure MPa

(Double Acting)
0.2
1.0
(Single Acting)
0.35
0.25

Ambient and fluid temperature

-10-60℃

Max.operating frequency

180(C.P.M)

60(C.P.M)

Repeatability Precision(mm)

±0.01

±0.02

*Lubrication

Not required

Port Size

M3×0.8

M5×0.8
