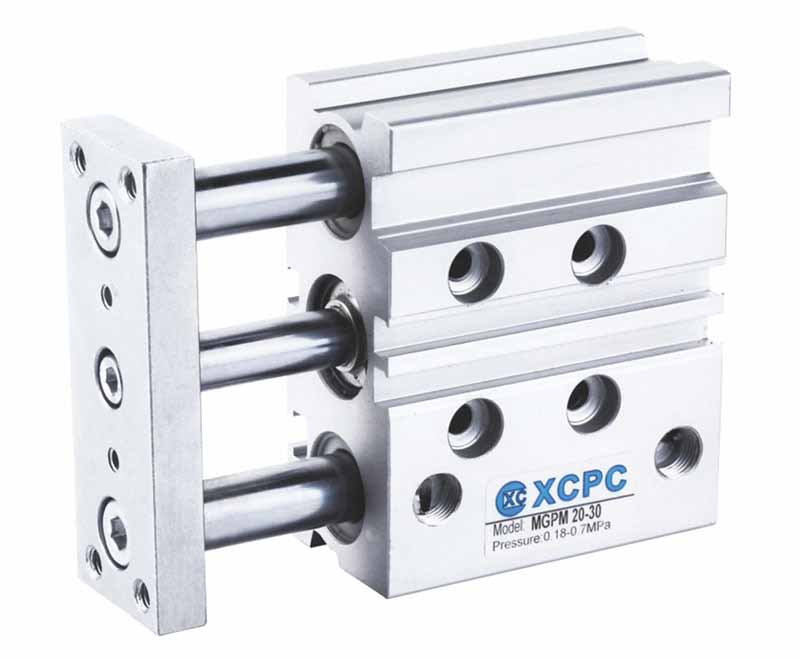

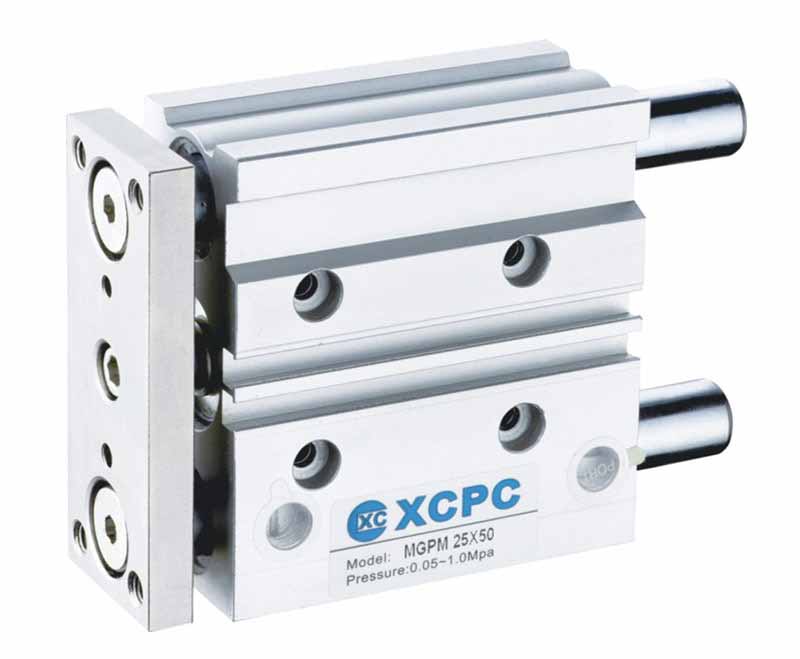

MGP Series Three-Shaft cylinder
SERIES: MGP Series Three-Shaft cylinder
MGP Series Three-Shaft cylinder
FEATURES

Working Medium

Air

Motion Pattern

Double-action

Ensured Pressure Resistance

1.5Mpa(15.3kgf/cm2)

Max.Operating pressure

1.0Mpa(10.2kgf/cm2)

Min. Operating pressure

0.12Mpa(1.2kgf/cm2)

Ambient and Medium Temperature

-10~+60℃

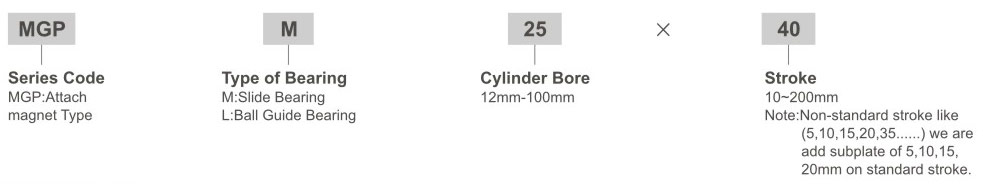

Ordering Code
Specification

Bore(mm)

12

16

20

25

32

40

50

63

80

100

Working Medium

Air

Motion Pattern

Double-action

Ensured Pressure Resistance

1.5Mpa(15.3kgf/cm2)

Max.Operating pressure

1.0Mpa(10.2kgf/cm2)

Min. Operating pressure

0.12Mpa(1.2kgf/cm2)

Ambient and Medium Temperature

-10~+60℃

Piston Speed

50~500mm/s

50~400mm/s

Buffer

Rubber Cushion

Tolerance of Stroke

+1.5
0 mm

Bearing

(Slide bearing/ball guide bdaring)

Precision of
Piston rod Non-rotating

Slide Bearing

±0.08°

±0.07°

±0.06°

±0.05°

±0.04°

Ball Guide Bearing

±0.10°

±0.09°

±0.08°

±0.06

±0.05°

Port size

M5×0.8

G1/8"

G1/4"

G3/8"

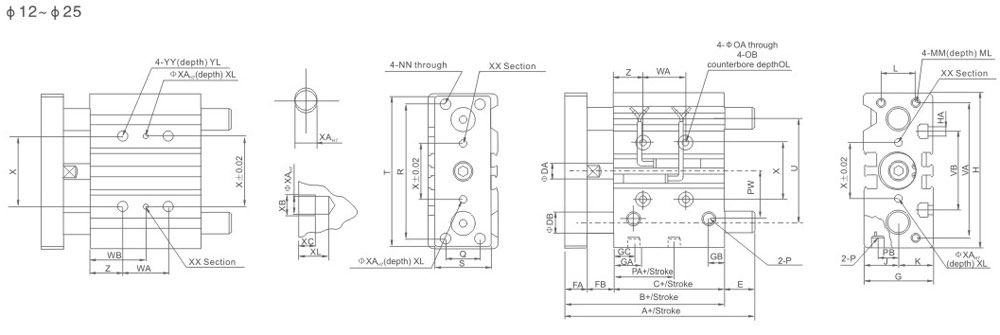

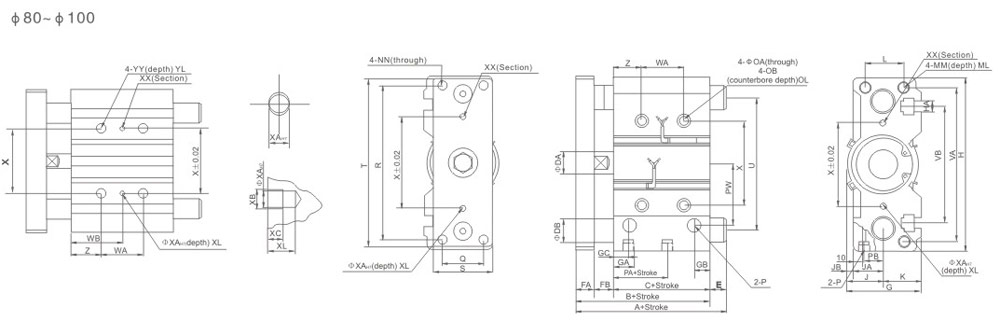

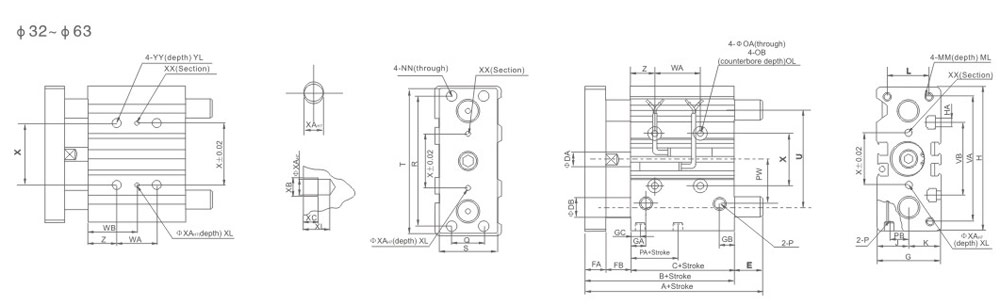

Overall Dimensions

Bore size

Standard stroke (mm)

B

C

DA

FA

FB

G

GA

GB

H

HA

J

K

L

MM

ML

NN

OA

12

10 20 30 40 50 75 100

42

29

6

8

5

26

11

7.5

58

M4

13

13

18

M4×0.7

10

M4×0.7

4.3

16

46

33

8

8

5

30

11

8

64

M4

15

15

22

M5×0.8

12

M5×0.8

4.3

20

20 30 40 50 75 100 125 150 175 200

53

37

10

10

6

36

10.5

8.5

83

M5

18

18

24

M5×0.8

13

M5×0.8

5.6

25

53.5

37.5

12

10

6

42

11.5

9

93

M5

21

21

30

M6×1.0

15

M6×1.0

5.6


Bore size

Standard stroke (mm)

OB

OL

P

PA

PB

PW

Q

R

S

T

U

VA

VB

X

XA

XB

XC

YL

Z

12

10 20 30 40 50 75 100

8

4.5

M5×0.8

13

8

18

14

48

22

56

41

50

37

23

3

3.5

3

10

5

16

8

4.5

M5×0.8

15

10

19

16

54

25

62

46

56

38

24

3

3.5

3

10

5

20

20 30 40 50 75 100 125 150 175 200

9.5

5.5

RC1/8

12.5

10.5

25

18

70

30

81

54

72

44

28

3

3.5

3

12

17

25

9.5

5.5

RC1/8

12.5

13.5

28.5

26

78

38

91

64

82

50

34

4

4.5

3

12

17


Bore size

Standard stroke (mm)

WA

WB

XL

YY

30 st or less
Over 40 st to 100 st
125 st or less
30 st or less
Over 40 st to 100 st
125 st or less

12

10 20 30 40 50 75 100

20

40

-

15

25

-

6

M5×0.8

16

24

44

-

17

27

-

6

M5×0.8

20

20 30 40 50 75 100 125 150 175 200

24

44

120

29

39

77

6

M6×1.0

25

24

44

120

29

39

77

6

M6×1.0


MGPG Slide bearing
MGPL Ball bushing bearing

Bore size

A

DB

E

50st≥

50st<100st≥

100st<

50st≥

50st<100st≥

100st<

12

42

60.5

85

8

0

18.5

43

16

46

64.5

95

10

0

18.5

49

A

DB

E

30st≥

30st<100st≥

100st<

30st≥

30st<100st≥

100st<

43

55

85

6

1

13

43

49

65

95

8

3

19

49


MGPM Slide bearing
MGPL Ball bushing bearing

Bore size

A

DB

E

50st≥

50st<200st≥

200st<

50st≥

50st<200st≥

200st<

20

53

84.5

122

16

0

31.5

69

25

53.5

85

122

20

0

31.5

68.5

A

DB

E

30st≥

30st<100st≥

100st<200st≥

200st<

30st≥

30st<100st≥

100st<200st≥

200st<

63

80

104

122

10

16

27

51

69

69.5

80.5

104.5

122

13

16

32

51

68.5



Bore size

Standard stroke (mm)

B

C

DA

FA

FB

G

GA

GB

GC

H

HA

J

K

L

MM

ML

NN

OA

OB

OL

P

PA

PB

PW

Q

32

25,50,
70, 100,125,
150,175,
200

59.5

37.5

16

12

10

48

12.5

9

12.5

112

M6

24

24

34

M8×1.25

20

M8×1.25

6.6

11

7.5

RC1/8

7

15

34

30

40

66

44

16

12

10

54

14

10

14

120

M6

27

27

40

M8×1.25

20

M8×1.25

6.6

11

7.5

RC1/8

13

18

38

30

50

72

44

20

16

12

64

14

11

12

148

M8

32

32

46

M10×1.5

22

M10×1.5

8.6

14

9

RC1/4

9

21.5

47

40

63

77

49

20

16

12

78

16.5

13.5

16.5

162

M10

39

39

58

M10×1.5

22

M10×1.5

8.6

14

9

RC1/4

14

28

55

50


R

S

T

U

VA

VB

X

XA

XB

XC

XL

Z

96

44

110

78

98

63

42

4

4.5

3

6

21

104

44

118

85

106

72

50

4

4.5

3

6

22

130

60

146

110

130

92

66

5

6

4

8

24

130

70

158

124

142

110

80

5

6

4

8

24


MGPM Slide bearing

Bore size

A

DB

E

50st≥

50st<200st≥

200st<

50st≥

50st<200st≥

200st<

32

97

102

140

20

37.5

42.5

80.5

40

97

102

140

20

31

36

74

50

106.5

118

161

25

34.5

46

89

63

106.5

118

161

25

29.5

41

84


MGPL Ball bushing bearing



Bore size

A

DB

E

50st≥

50st<100st≥

100st<200st≥

200st<

50st≥

50st<100st≥

100st<200st≥

200st<

32

81

98

118

140

16

21.5

38.5

58.5

80

40

81

98

118

140

16

15

32

52

74

50

93

114

134

161

20

21

42

62

89

63

93

114

134

161

20

16

37

57

84


Bore size

Standard stroke (mm)

B

C

DA

FA

FB

G

GA

GB

GC

H

HA

J

LA
LB

K

L

MM

ML

NN

OA

OB

OL

P

PA

PB

80

25,50,70, 100,
125,150,175,200

95.5

56.5

25

22

18

91.5

19

15.5

14.5

202

M12

45.5

38
7.5

46

54

M12×1.75

30

M12×1.75

10.6

17.5

8

RC3/8

14.5

25.5

100

116

66

30

25

111.5

23

23

19

18

240

M14

55.5

45
10.5

56

62

M14×2.0

32

M14×2.0

12.5

20

8

RC3/8

17.5

32.5


Bore size

Standard stroke (mm)

PW

Q

R

S

T
U

VA

VB

WA

WB

X

XA

XB

XC

XL

YY

YL

Z

25st
50,75,100st
100st or above
25st
50,75,100st
100st or above

80

25,50,70, 100,
125,150,175,200

74

52

174

75

198
156

180

140

28

52

128

42

54

92

100

6

7

5

10

M12×1.75

24

28

100

89

64

210

90

236
188

210

166

48

72

148

35

47

85

124

6

7

5

10

M14×2.0

28

11


Bore size

A

DB

E

50st≥

50st<200st≥

200st<

50st≥

50st<200st≥

200st<

80

115

142

193

30

18.5

45.5

96.5

100

137

162

203

36

21

46

87


Bore size

A

DB

E

50st≥

25st<50st≥

50st<200st≥

200st<

50st≥

25st<50st≥

50st<200st≥

200st<

80

109.5

130

160

193

25

13

33.5

63.5

96.5

100

121

147

180

203

30

5

31

64

87


Other info
Bore size(mm) Standard stroke(mm)
12, 16 10 20 30 40 50 75 100 125 150 175 200 250
20, 25 20 30 40 50 75 100 125 150 175 200 250 300 350 400
32 to 100 25 50 75 100 125 150 175 200 250 300 350 400
