ST Series Shuttle Valve
SERIES: ST Series Shuttle Valve

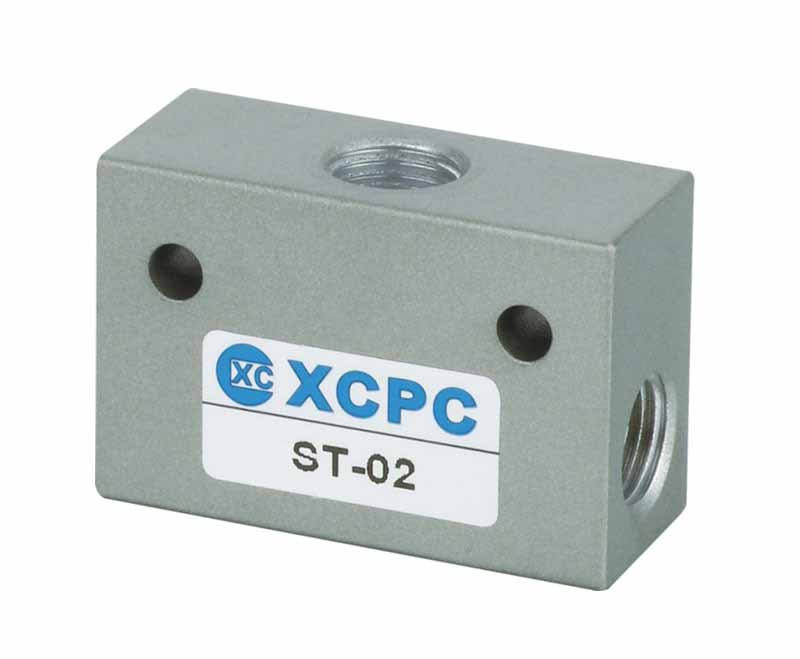

ST Series Shuttle Valve
FEATURES
 Working Medium
|
Air
|
|
Working Pressure Range
|
0~1.0MPa
|
|
Operating Temperature Range
|
-5~60
|

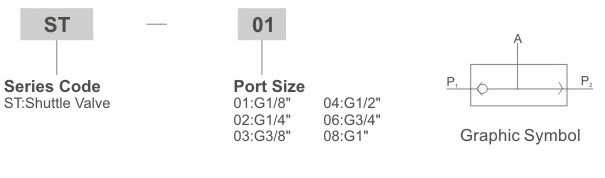

Ordering Code
Specification
|
Model
|
ST-01
|
ST-02
|
ST-03
|
ST-04
|
ST-06
|
ST-08
|
|
Working Medium
|
Air
|
|||||
|
Effective Sectional Area
|
7.5mm2
|
21mm2
|
40mm2
|
60mm2
|
110mm2
|
190mm2
|
|
Port Size
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
G3/4"
|
G1"
|
|
Working Pressure Range
|
0~1.0MPa
|
|||||
|
Operating Temperature Range
|
-5~60
|
|||||

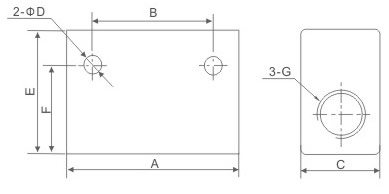

Overall Dimensions
|
Mode/Symbol
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
ST-01
|
40
|
24
|
16
|
4.5
|
25
|
20.5
|
G1/8”
|
|
ST-02
|
50
|
35
|
22
|
5.5
|
35
|
25
|
G1/4”
|
|
ST-03
|
75
|
48
|
30
|
7
|
50
|
42
|
G3/8”
|
|
ST-04
|
75
|
48
|
30
|
7
|
50
|
42
|
G1/2”
|
|
ST-06
|
110
|
72
|
40
|
7
|
70
|
58
|
G3/4”
|
|
ST-08
|
110
|
72
|
40
|
7
|
70
|
58
|
G1”
|
