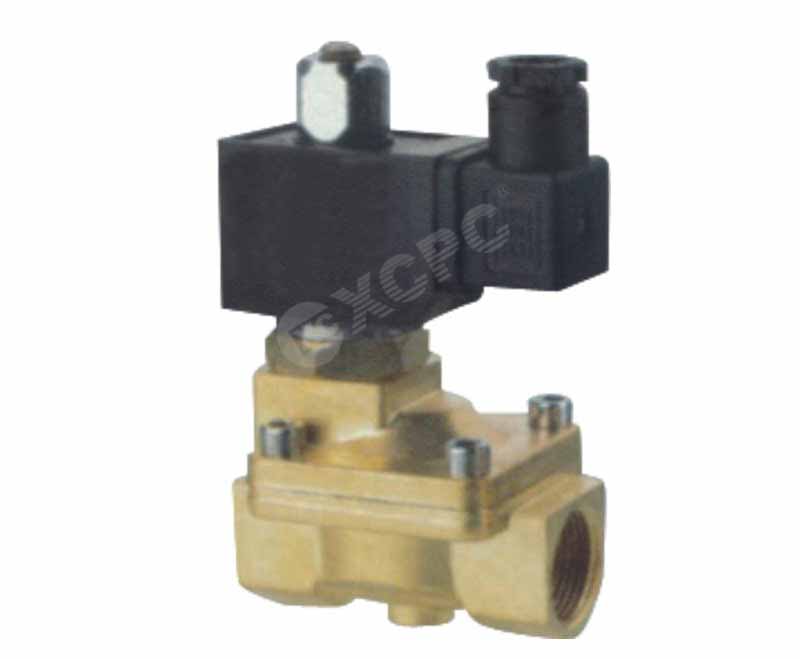

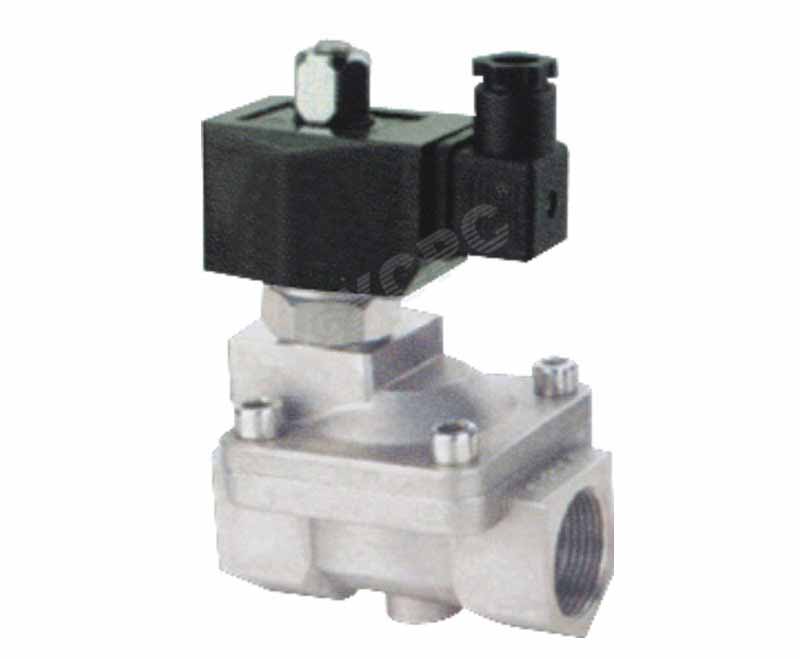

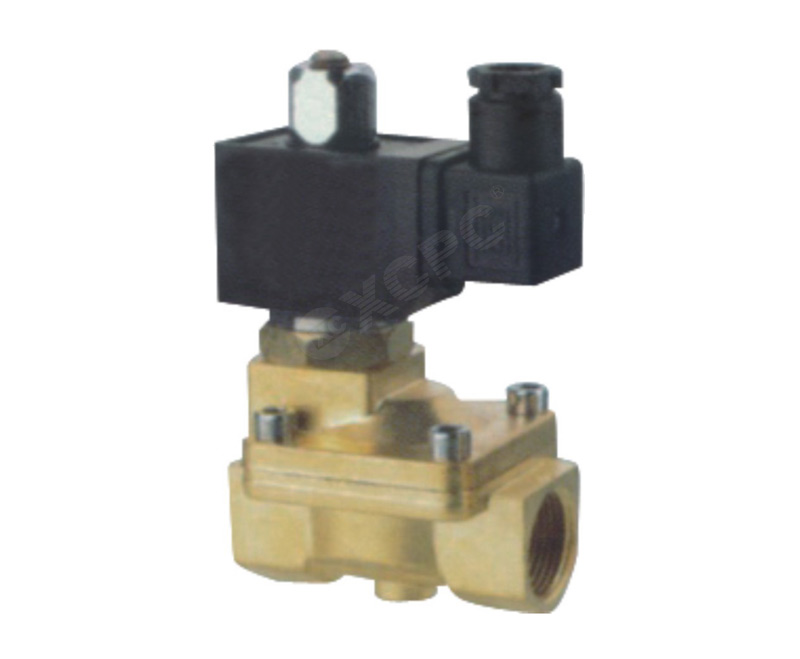

SLP Series Normal Open Solenoid Valve
SERIES: SLP Series Normal Open Solenoid Valve
SLP Series Normal Open Solenoid Valve
FEATURES
|
Normal Open, avaiable body: brass, SS316 Multiple seals are available for different medium. Wide size range from 1/8" to 2" with both thread and flange connection Diaphragm pilot solenoid valve, with lower working pressure. |

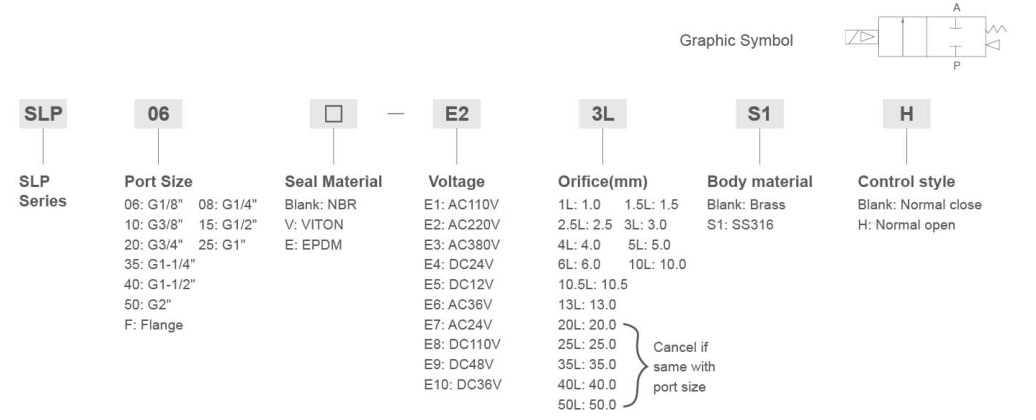

Ordering Code

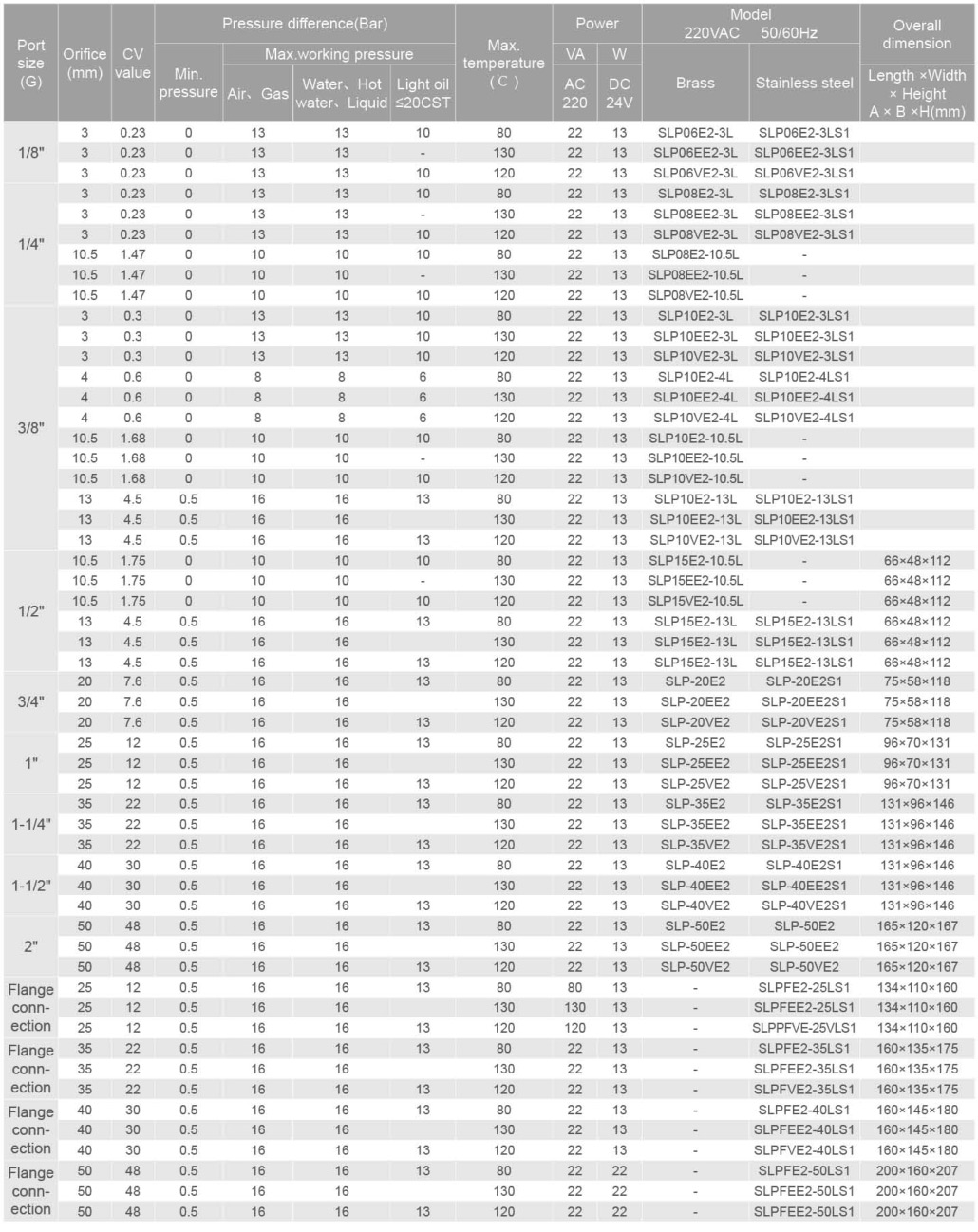

Specification
| Port Size (G) | Orifice (mm) | CV Value | Pressure difference(Bar) | Max. temperature (℃) | Power | Model 220VAC 5C/60Hz | |||||
| Min. pressure | Max. working pressure | VA | W | ||||||||
| Air、Gas | Water、Hot water、Liquid | Light oil ≤20CST | AC 220 | DC 24V | Brass | Stainless steel | |||||
| 1/8" | 1 | 0.04 | 0 | 30 | 30 | 25 | 80 | 22 | 13 | SLP06E2-1LH | SLP06E2-1LS1H |
| 1 | 0.04 | 0 | 30 | 30 | – | 130 | 22 | 13 | SLP06EE2-1LH | SLP06EE2-1LS1H | |
| 1 | 0.04 | 0 | 30 | 30 | 25 | 120 | 22 | 13 | SLP06VE2-1LH | SLP06VE2-1LS1H | |
| 1.5 | 0.09 | 0 | 20 | 20 | 15 | 80 | 22 | 13 | SLP06E2-1.5LH | SLP06E2-1.5LS1H | |
| 1.5 | 0.09 | 0 | 20 | 20 | – | 130 | 22 | 13 | SLP06EE2-1.5LH | SLP06EE2-1.5LS1H | |
| 1.5 | 0.09 | 0 | 20 | 20 | 15 | 120 | 22 | 13 | SLP06VE2-1.5LH | SLP06VE2-1.5LS1H | |
| 2.5 | 0.2 | 0 | 15 | 15 | 12 | 80 | 22 | 13 | SLP06E2-2.5LH | SLP06E2-2.5LS1H | |
| 2.5 | 0.2 | 0 | 15 | 15 | – | 130 | 22 | 13 | SLP06EE2-2.5LH | SLP06EE2-2.5LS1H | |
| 2.5 | 0.2 | 0 | 15 | 15 | 12 | 120 | 22 | 13 | SLP06VE2-2.5LH | SLP06VE2-2.5LS1H | |
| 3 | 0.25 | 0 | 12 | 12 | 10 | 80 | 22 | 13 | SLP06E2-3LH | SLP06E2-3LS1H | |
| 3 | 0.25 | 0 | 12 | 12 | – | 130 | 22 | 13 | SLP06EE2-3LH | SLP06EE2-3LS1H | |
| 3 | 0.25 | 0 | 12 | 12 | 10 | 120 | 22 | 13 | SLP06VE2-3LH | SLP06VE2-3LS1H | |
| Port Size (G) | Orifice (mm) | CV Value | Pressure difference(Bar) | Max. temperature (℃) | Power | Model 220VAC 5C/60Hz | Overall dimension | |||||
| Min. pressure | Max. working pressure | VA | W | |||||||||
| Air、 Gas | Water、Hot water、Liquid | Light oil ≤20CST | AC 220 | DC 24V | Brass | Stainless steel | Length×Width×Height A×B×H(mm) | |||||
| 1/4" | 1 | 0.04 | 0 | 30 | 30 | 25 | 80 | 22 | 13 | SLP08E2-1LH | SLP08E2-1LS1H |
|
| 1 | 0.04 | 0 | 30 | 30 | – | 130 | 22 | 13 | SLP08EE2-1LH | SLP08EE2-1LS1H |
|
|
| 1 | 0.04 | 0 | 30 | 30 | 25 | 120 | 22 | 13 | SLP08VE2-1LH | SLP08VE2-1LS1H |
|
|
| 1.5 | 0.09 | 0 | 20 | 20 | 15 | 80 | 22 | 13 | SLP08E2-1.5LH | SLP08E2-1.5LS1H |
|
|
| 1.5 | 0.09 | 0 | 20 | 20 | – | 130 | 22 | 13 | SLP08EE2-1.5LH | SLP08EE2-1.5LS1H |
|
|
| 1.5 | 0.09 | 0 | 20 | 20 | 15 | 120 | 22 | 13 | SLP08VE2-1.5LH | SLP08VE2-1.5LS1H |
|
|
| 2.5 | 0.2 | 0 | 15 | 15 | 12 | 80 | 22 | 13 | SLP08E2-2.5LH | SLP08E2-2.5LS1H |
|
|
| 2.5 | 0.2 | 0 | 15 | 15 | – | 130 | 22 | 13 | SLP08EE2-2.5LH | SLP08EE2-2.5LS1H |
|
|
| 2.5 | 0.2 | 0 | 15 | 15 | 12 | 120 | 22 | 13 | SLP08VE2-2.5LH | SLP08VE2-2.5LS1H |
|
|
| 3 | 0.25 | 0 | 12 | 12 | 10 | 80 | 22 | 13 | SLP08E2-3LH | SLP08E2-3LS1H |
|
|
| 3 | 0.25 | 0 | 12 | 12 | – | 130 | 22 | 13 | SLP08EE2-3LH | SLP08EE2-3LS1H |
|
|
| 3 | 0.25 | 0 | 12 | 12 | 10 | 120 | 22 | 13 | SLP08VE2-3LH | SLP08VE2-3LS1H |
|
|
| 3/8" | 13 | 4.5 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 | SLP10E2-13LH | SLP10E2-13LS1H | 66×48×124 |
| 13 | 4.5 | 0.5 | 8 | 8 |
|
120 | 33 | 32 | SLP10EE2-13LH | SLP10EE2-13LS1H | 66×48×124 | |
| 13 | 4.5 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 | SLP10VE2-13LH | SLP10VE2-13LS1H | 66×48×124 | |
| 1/2" | 13 | 4.5 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 | SLP15E2-13LH | SLP15E2-13LS1H | 66×48×124 |
| 13 | 4.5 | 0.5 | 8 | 8 |
|
120 | 33 | 32 | SLP15EE2-13LH | SLP15EE2-13LS1H | 66×48×124 | |
| 13 | 4.5 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 | SLP15VE2-13LH | SLP15VE2-13LS1H | 66×48×124 | |
| 3/4" | 20 | 7.6 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 | SLP-20E2H | SLP-20E2S1H | 75×58×130 |
| 20 | 7.6 | 0.5 | 8 | 8 |
|
120 | 33 | 32 | SLP-20EE2H | SLP-20EE2S1H | 75×58×130 | |
| 20 | 7.6 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 | SLP-20VE2H | SLP-20VE2S1H | 75×58×130 | |
| 1" | 25 | 12 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 | SLP-25E2H | SLP-25E2S1H | 96×70×143 |
| 25 | 12 | 0.5 | 8 | 8 |
|
120 | 33 | 32 | SLP-25EE2H | SLP-25EE2S1H | 96×70×143 | |
| 25 | 12 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 | SLP-25VE2H | SLP-25VE2S1H | 96×70×143 | |
| 1-1/4" | 35 | 22 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 | SLP-35E2H | SLP-35E2S1H | 131×96×158 |
| 35 | 22 | 0.5 | 8 | 8 |
|
120 | 33 | 32 | SLP-35EE2H | SLP-35EE2S1H | 131×96×158 | |
| 35 | 22 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 | SLP-35VE2H | SLP-35VE2S1H | 131×96×158 | |
| 1-1/2" | 40 | 30 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 | SLP-40E2H | SLP-40E2S1H | 131×96×158 |
| 40 | 30 | 0.5 | 8 | 8 |
|
120 | 33 | 32 | SLP-40EE2H | SLP-40EE2S1H | 131×96×158 | |
| 40 | 30 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 | SLP-40VE2H | SLP-40VE2S1H | 131×96×158 | |
| 2" | 50 | 48 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 | SLP-50E2H | SLP-50E2S1H | 165×120×179 |
| 50 | 48 | 0.5 | 8 | 8 |
|
120 | 33 | 32 | SLP-50EE2H | SLP-50EE2S1H | 165×120×179 | |
| 50 | 48 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 | SLP-50VE2H | SLP-50VE2S1H | 165×120×179 | |
| Flange conn-ection | 25 | 12 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 |
|
SLPFE2-25LS1H | 134×110×172 |
| 25 | 12 | 0.5 | 8 | 8 |
|
120 | 33 | 32 |
|
SLPFEE2-25LS1H | 134×110×172 | |
| 25 | 12 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 |
|
SLPFVE2-25LS1H | 134×110×172 | |
| Flange conn-ection | 35 | 22 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 |
|
SLPFE2-35LS1H | 160×135×187 |
| 35 | 22 | 0.5 | 8 | 8 |
|
120 | 33 | 32 |
|
SLPFEE2-35LS1H | 160×135×187 | |
| 35 | 22 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 |
|
SLPFVE2-35LS1H | 160×135×187 | |
| Flange conn-ection | 40 | 30 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 |
|
SLPFE2-40LS1H | 160×145×192 |
| 40 | 30 | 0.5 | 8 | 8 |
|
120 | 33 | 32 |
|
SLPFEE2-40LS1H | 160×145×192 | |
| 40 | 30 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 |
|
SLPFVE2-40LS1H | 160×145×192 | |
| Flange conn-ection | 50 | 48 | 0.5 | 8 | 8 | 7 | 80 | 33 | 32 |
|
SLPFE2-50LS1H | 200×160×219 |
| 50 | 48 | 0.5 | 8 | 8 |
|
120 | 33 | 32 |
|
SLPFEE2-50LS1H | 200×160×219 | |
| 50 | 48 | 0.5 | 8 | 8 | 7 | 120 | 33 | 32 |
|
SLPFVE2-50LS1H | 200×160×219 | |
Overall Dimensions
