PU225 Guide Type Solenoid Valve
SERIES: PU225 Guide Type Solenoid Valve
PU225 Guide Type Solenoid Valve
FEATURES
 Working Medium
|
Air.Water.Oil
|
|
Motion Pattern
|
Guide Type
|
|
Type
|
Normal Close Type
|
|
Operation Fluid Viscosity
|
50 CST(Below)
|
|
Working-Pressure
|
0.05~1.0MPa
|
|
Max. Pressure Resistance
|
1.5MPa
|

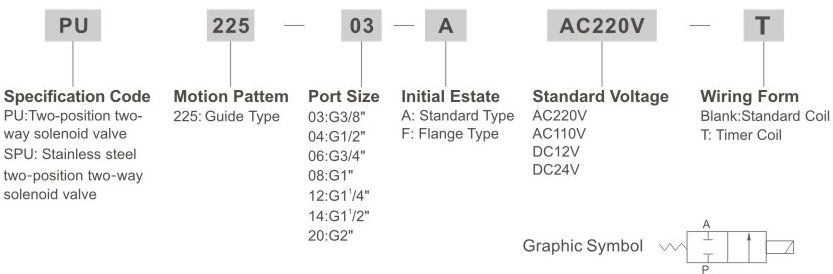

Ordering Code
Specification
|
Model
|
PU225-03A
|
PU225-04A
|
PU225-06A
|
PU225-08A
|
PU225-12A
|
PU225-14A
|
PU225-20A
|
|
SPU225-03A
|
SPU225-04A
|
SPU225-06A
|
SPU225-08A
|
SPU225-12A
|
SPU225-14A
|
||
|
Working Medium
|
Air.Water.Oil
|
||||||
|
Motion Pattern
|
Guide Type
|
||||||
|
Type
|
Normal Close Type
|
||||||
|
Aperture of Flow Rate(mm)
|
13
|
13
|
25
|
25
|
38
|
38
|
50
|
|
CV Value
|
4.50
|
4.50
|
12.00
|
12.00
|
22.00
|
30.00
|
48.00
|
|
Port Size
|
G3/8"
|
G1/2"
|
G3/4"
|
G1"
|
G1/4"
|
G1/2"
|
G2"
|
|
Operation Fluid Viscosity
|
50 CST(Below)
|
||||||
|
Working-Pressure
|
0.05~1.0MPa
|
||||||
|
Max. Pressure Resistance
|
1.5MPa
|
||||||
|
Operating Temperature Range
|
-5~+80℃
|
||||||
|
Material of Body
|
Brass or steel
|
||||||

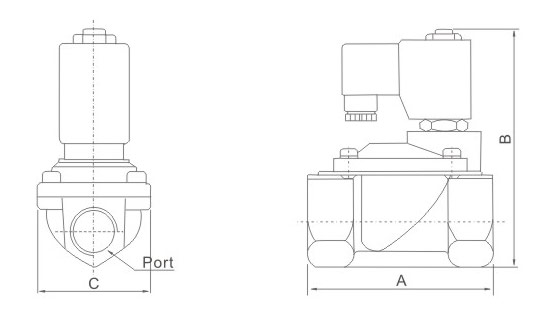

Overall Dimensions
|
Model
|
Bore
|
A
|
B
|
C
|
|
PU225-03A
|
G3/8"
|
66.5
|
106.5
|
48.0
|
|
SPU225-03A
|
||||
|
PU225-04A
|
G1/2"
|
66.5
|
106.5
|
48.0
|
|
SPU225-04A
|
||||
|
PU225-06A
|
G3/4"
|
72.0
|
113.0
|
58.0
|
|
SPU225-06A
|
||||
|
PU225-08A
|
G1"
|
96.0
|
121.0
|
70.0
|
|
SPU225-08A
|
||||
|
PU225-12A
|
G1/4"
|
128.0
|
145.5
|
96.0
|
|
SPU225-12A
|
||||
|
PU225-14A
|
G1/2"
|
128.0
|
145.5
|
96.0
|
|
SPU225-14A
|
||||
|
PU225-20A
|
G2"
|
161.0
|
160.5
|
112.0
|
