AF,BF(Air filter)
SERIES: AC,BC Series F.R.L
AF,BF(Air filter)
FEATURES
Operating Fluid
Air
Range of Adjustable Pressure
0.05-0.85MPa
Max.Adjustable Pressure
0.95MPa
Ensured Pressure Resistance
1.5MPa
Operating Temperature Range
5-60℃
Material OF Body
Aluminum Die-casting Forming
Ordering Code
Specification
Model

AR1500

AR2000

BR2000

BR3000 BR4000
Operating Fluid Air
Port Size G1/8" G1/4" G1/4" G3/8" G1/2"
Range of Adjustable Pressure 0.05-0.85MPa
Max.Adjustable Pressure 0.95MPa
Ensured Pressure Resistance 1.5MPa
Operating Temperature Range 5-60℃
Weight 0.20KG 0.23KG
Material OF Body Aluminum Die-casting Forming

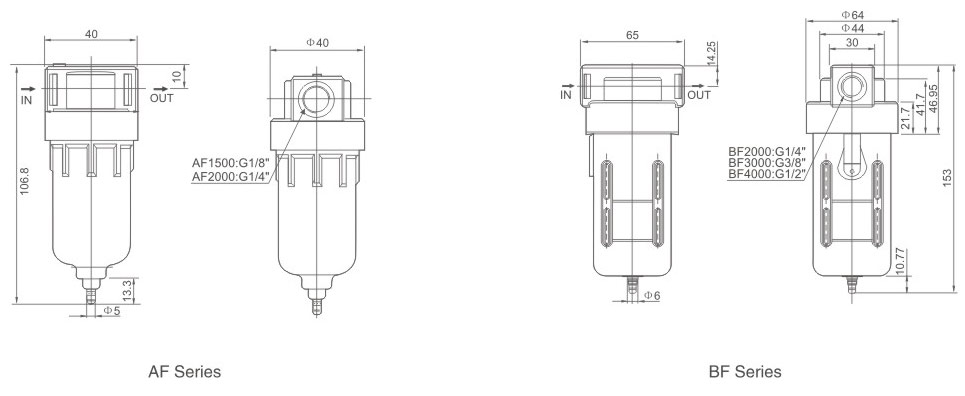

Overall Dimensions
