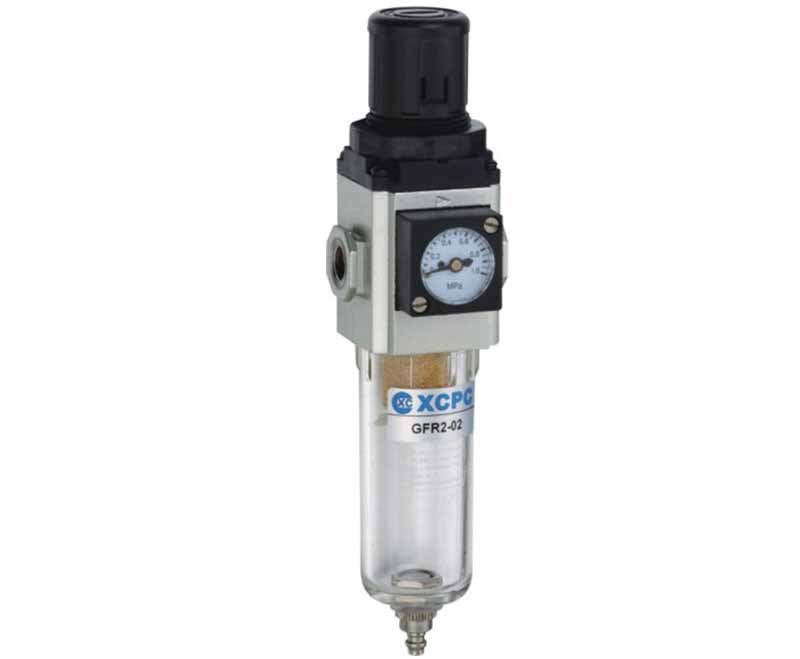

Series: XGFR(Filter&Regulator)
 Working Medium
|
Compressed Air
|
|
Port Size
|
G1/8"-G1/2"
|
|
Filter Precision
|
40μm or 5μm
|
|
Pressure Range
|
0.05~0.9MPa
|
|
Ensured pressure Resistance
|
1.5MPa
|
|
Operating Temperature Range
|
5~60℃
|
|

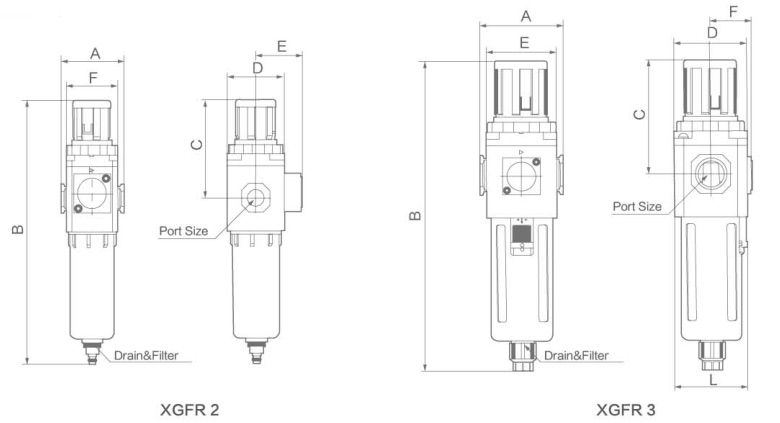

Model |
Port Size |
A |
B |
C |
D |
F |
L |
|
XGFR2 |
G1/8-1/4" |
47 |
183 |
68 |
40 |
32.5 |
- |
|
XGFR3 |
G1/4-1/2" |
60 |
224 |
82.5 |
53 |
51 |
53 |
