 Filter Precision
|
25µ
|
|||||||
|
Highest Working Pressure
|
1.0MPa
|
|||||||
|
Ensured pressure Resistance
|
1.5MPa
|
|||||||
|
Operating Temperature Range
|
5-60℃
|
|||||||
|
Container Material
|
Polycarbonate
|
|||||||

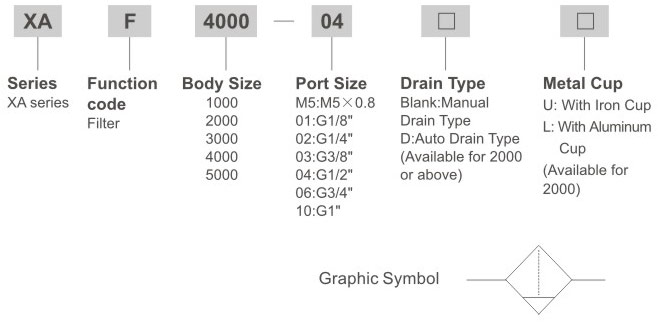

| Model |
XAF1000-M5 |
XAF2000-01 |
XAF2000-02 |
XAF3000-02 |
XAF3000-03 |
XAF4000-03 |
XAF4000-04 | XAF4000-06 | XAF5000-06 | XAF5000-10 |
| Rated Flow |
110 |
750 | 750 | 1500 | 1500 | 4000 | 4000 | 6000 | 7000 | 7000 |
| Port Size | M5 | G1/8" | G1/4" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" |
| Filter Precision | 25µ | |||||||||
| Highest Working Pressure | 1.0MPa | |||||||||
| Ensured pressure Resistance | 1.5MPa | |||||||||
| Operating Temperature Range | 5-60℃ | |||||||||
| Container Material | Polycarbonate | |||||||||
| Protective Cover | Not Available | Available | ||||||||
| Drain Function | Differential Drain | Differential Drain,Automatic Drain | ||||||||
|

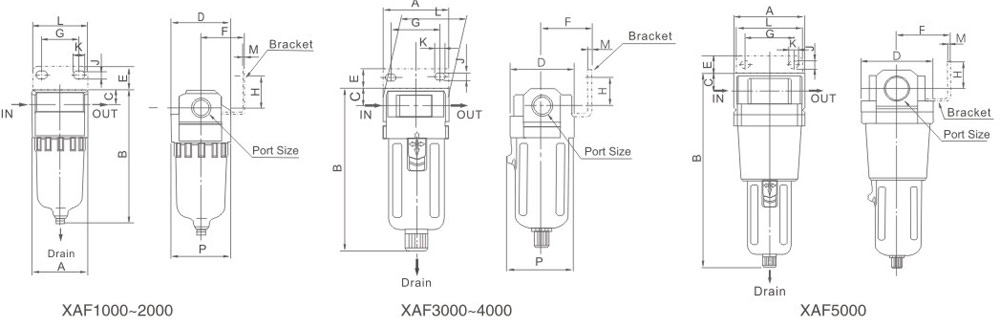

Model |
Port Size(G) |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
P |
|
XAF1000 |
M5 |
25 |
66 |
7 |
25 |
- |
- |
- |
- |
- |
- |
- |
- |
26.5 |
|
XAF2000 |
G1/8"-G1/4" |
40 |
97.5 |
11 |
40 |
17 |
30 |
27 |
22 |
5.4 |
8.4 |
40 |
2.3 |
40 |
|
XAF3000 |
G1/4"-G3/8" |
53 |
132.5 |
14 |
53 |
16 |
41 |
40 |
23 |
6.5 |
8 |
53 |
2.3 |
56 |
|
XAF4000 |
G3/8"-1/2" |
70 |
168.5 |
18 |
70 |
17 |
50 |
54 |
26 |
8.5 |
10.5 |
70 |
2.3 |
73 |
|
XAF4000-06 |
G3-4" |
75 |
172.5 |
20 |
70 |
14 |
50 |
54 |
25 |
8.5 |
10.5 |
70 |
2.3 |
73 |
|
XAF5000 |
G3/4"-G1" |
90 |
247.5 |
24 |
90 |
23 |
66.5 |
66 |
35 |
11 |
13 |
90 |
3.2 |
90 |
