ISO-RB Type
SERIES: ISO Standard Cylinder Accessories
ISO-RB Type
FEATURES

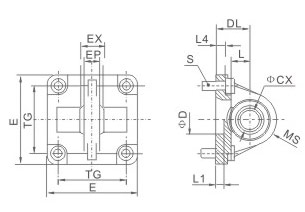

Overall Dimensions

Symbol/Bore

32

40

50

63

80

100

TG
32.5

38

46.5

56.5

72

89

ΦCK

10

12

16

16

20

20

DL
22
25
27
32
36
41

L

12

15

15

20

20

25

EX

14

16

21

21

25

25

EP

10.5

12

15

15

18

18

S

M6X20

M6X20

M8X20

M8X20

M10X25

M10X25

L4

5.5

5.5

6.5

6.5

10

10

D

30

35

40

45

45

55

L1

7

7

7

7

9

9

E
45
52
65
75
95
115
MS
16
18
21
23
28
30
