XOU (Two Elements)

Series: XOU (Two Elements)

The XOU consisted of XOFR and XOL,each unit can be ordered separately. The XOF with water separator cleans the compressed air of fluid oil,condensation and dirt. Particles.For special application,the standard 40 μm filter element may easily be repla ced by a 5 μm filter element

Guarda il video

Scarica PDF Inquily now

Sottoserie di سلسلة XO F.R.L.

6Results

XOC (Three Elements)

XOU (Two Elements)

XOFR(Filter&Regulator)

XOF(Air filter)

XOL(Lubricator)

XOR(Regulator)

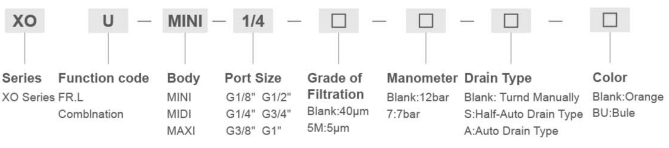

Codice di ordine

Specificazione

Model		MINI			MIDI			MAXI
Manual Drain	Working pressure:12bar,40µm	XOU-1/8-MINI	XOU-1/4-MINI	XOU-3/8-MINI	XOU-3/8-MIDI	XOU-1/2-MIDI	XOU-3/4-MIDI	XOU-3/4-MAXI	XOU-1-MAXI
	Working pressure:7bar,40µm	XOU-1/8-7-MINI	XOU-1/4-D-7-MINI	XOU-3/8-7-MINI	XOU-3/8-7-MIDI	XOU-1/2-7-MIDI	XOU-3/4-7-MIDI	XOU-3/4-7-MAXI	XOU-1-7-MAXI
	Working pressure:12bar,5µm	XOU-1/8-5M-MINI	XOU-1/4-5M-MINI	XOU-3/8-5M-MINI	XOU-3/8-5M-MIDI	XOU-1/2-5M-MIDI	XOU-3/4-5M-MIDI	XOU-3/4-5M-MAXI	XOU-1-5M-MAXI
Manometer	0-12bar	OMA-40-16-1/8			OMA-50-16-1/4
	0-7bar	OMA-40-10-1/8			OMA-50-10-1/4
Medium		Compressed Air
Features of structure		Sintered filter with water sparator;MINI/MIDI:MAXI:Piston regulator;Diaphragm type regulator;Direct constant-density lubricator
Mounting type		Pipe mounting or foot mounting
Assembly position		Vertical± 5°
Connection		G1/8"	G1/4"	G3/8"	G3/8"	G1/2"	G3/4"	G3/4"	G1"
Standard nominal flow rate	XOU-...(-A)	700	1000	1200	2000	2600	2600	7000	8000
	XOU-...-7-(-A)	800	1300	1500	2500	2800	2800	8500	8700
	XOU-...-5M-(-A)	600	850	1050	1700	1800	2100	6500	7200
Primary	Manualcondensate drain	1~16bar
	Automatic condensate drain	1.5~12bar
Working pressure		0.5~12bar/0.5~7bar
Min.Standard nominal flow rate		3 L/min		6 L/min				10 L/min
Grade of filtration		40 m/5 m
Capacity of condensate fluid		22ml			43ml			80ml
Timperature range		0~60℃
Materials information		Housing:Zinc die-casting;Filter bowl and oil bowl:PC;Meta bowl guard:Aluminium alloy;Sealing:NBR;Adjusting knob:POM

Dimensioni complessive

Model	E1	E2	E3	E4	E5	E6	E7	F1	F2
XOU-...-MINI	104	92	40	39	76	95	2	G1/8",G1/4",G3/8"	M36*1.5
XOU-...-MIDI	140	125	55	47	93	112	3	G3/8",G1/2",G3/4"	M52*1.5
XOU-...-MAXI	162,182	146,157	66	53	104	124	3	G3/4",G1"	M52*1.5

Model	F3	F4	F5	F6	L1	L2	L3	H1	H2	H3	H4	H5	H6
XOU-...-MINI	31	M4	4.5	41	44	35	11	194	169	69	17.5	20	15
XOU-...-MIDI	50	M5	5.5	52	71	60	22	250	206	97	24.5	32	15
XOU-...-MAXI	50	M5	5.5	53	71	60	22	272	226	80	24.5	32,40	15
