AC,BC (Three Elements)

Series: AC,BC (Three Elements)

Operating Fluid	Air
Filtering Element Reughness	40µ
Range of Adjustable Pressure	0.05~0.85MPa
Max Adjustable Pressure	0.95MPa
Ensu red Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃

Guarda il video

Scarica PDF Inquily now

X

Sottoserie di AC,BC Series F.R.L. (باللغة الإنجليزية)

6Results

AC,BC (Three Elements)

AFC,BFC (Two Elements)

AFR,BFR( Filter&Regulato)

AF,BF(Air filter)

AR,BR(Regulator)

AL.BL(Lubricator)

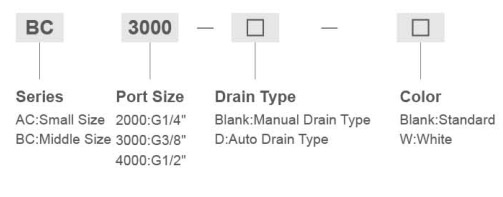

Codice di ordine

Specificazione

Model		AC2000	BC2000	BC3000	BC4000
Operating Fluid		Air
Port Size		G1/4"	G1/4"	G3/8"	G1/2"
Fitierlng Element Reughness		40µ
Range of Adjustable Pressure		0.05~0.85MPa
Max Adjustable Pressure		0.95MPa
Ensu red Pressure Resistance		1.5MPa
Operating Temperature Range		5-60℃
Capacitv of Filter Cup		15 cc	60 cc
Capacity of Oil Feed Cup		25 cc	90 cc
Suggested Lube		lSO VG 32 or Same Grade Oil
Material	Body	Aluminum Die-casting Forming
	Container Cup	PE
	Protedive Cup Cover	-	Iron
Composing Elementsl	Fitier	AF2000	BF2000	BF3000	BF4000
	Regulator	AR2000	BR2000	BR3000	BR4000
	Lubricator	AL2000	BL2000	BL3000	BL4000

Dimensioni complessive
