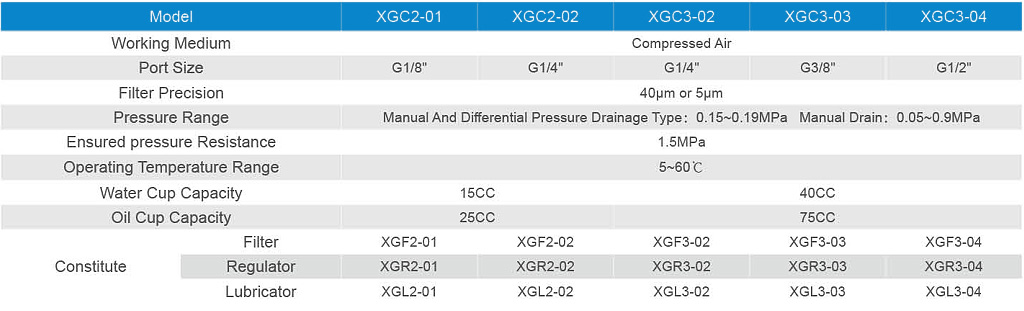

Series: XGC(Three Elements)
 Working Medium
|
Compressed Air
|
|
Port Size
|
G1/8"-G1/2"
|
|
Filter Precision
|
40μm or 5μm
|
|
Pressure Range
|
0.05~0.9MPa
|
|
Ensured pressure Resistance
|
1.5MPa
|
|
Operating Temperature Range
|
5~60℃
|
|

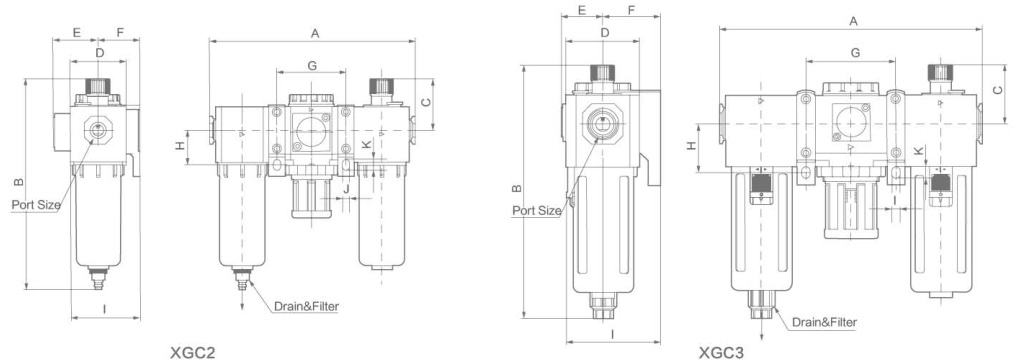

Model |
Port Size |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
|
XGC2 |
G1/8-1/4" |
146.5 |
152 |
37 |
40 |
31.5 |
30 |
50 |
25 |
50 |
5 |
8 |
|
XGC3 |
G1/4-1/2" |
188.5 |
182.5 |
42.5 |
53 |
29 |
41.5 |
64 |
35 |
68 |
6 |
8.5 |
Accurate requlation of an optimal air fl...
Accurate regulation of an optimal airflo...
One-Touch push-to-connect configuration ...
