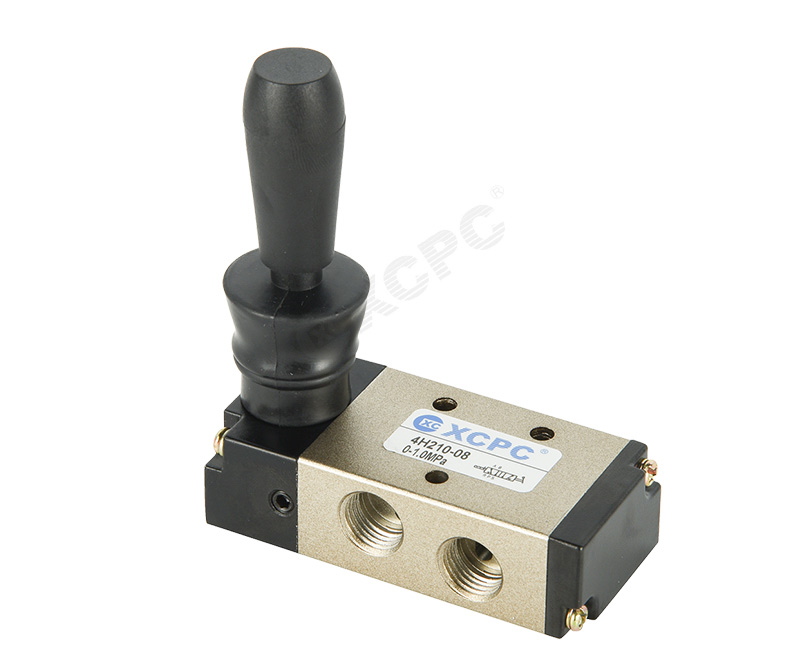

Series: TSV/4H Series Hand-pull Valve
 Working Medium
|
40 Micron Filtered Air
|
|
Motion Pattern
|
Direct Drive Type
|
|
Effective Sectional Area
|
18mm²(CV=1.00)
|
|
Port Size
|
G1/4"
|
|
Working-pressure Range
|
0~1.0MPa
|
|
Operating Temperature Range
|
0~60℃
|
|
Model
|
TSV86522M/S
|
TSV98322M/S
|
|
Working Medium
|
40 Micron Filtered Air
|
|
|
Motion Pattern
|
Direct Drive Type
|
|
|
Effective Sectional Area
|
18mm²(CV=1.00)
|
|
|
Port Size
|
G1/4"
|
|
|
Working-pressure Range
|
0~1.0MPa
|
|
|
Operating Temperature Range
|
0~60℃
|
|
|
Model
|
4H210-06
|
4H210-08
|
4H230-08
|
4H310-08
|
4H310-10
|
4H330-10
|
4H410-15
|
4H430-15
|
|
Working Medium
|
40 Micron Filtered Air
|
|||||||
|
Motion Pattern
|
Direct Drive Type
|
|||||||
|
Effective Sectional Area
|
14mm2(CV=0.78)
|
16mm2(CV=0.89)
|
12mm2(CV=0.67)
|
25mm2(CV=1.4)
|
30mm2(CV=1.68)
|
30mm2(CV=1.68)
|
50mm2(CV=2.79)
|
50mm2(CV=2.79)
|
|
Port Size
|
Air Inlet=Air
Outlet= Exhaust=G1/8" |
Air Inlet=Air Outlet=
Exhaust=G1/4" |
Air Inlet=Air
Outlet= Exhaust=G1/4" |
Air Inlet=Air Outlet=
G3/8” Exhaust=G1/4" |
Air Inlet=Air Outlet=
Exhaust=G1/2" |
|||
|
Working-pressure Range
|
0~1.0MPa
|
|||||||
|
Operating Temperature Range
|
0~60℃
|
|||||||
|
Symbol/Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
O
|
P
|
Q
|
|
4H210-06
|
76
|
56.5
|
31.5
|
22
|
95
|
6.5
|
66.5
|
18
|
20
|
36
|
21
|
35
|
21
|
G1/8"
|
G1/8"
|
4.3
|
-
|
|
4H230-06
|
76
|
56.5
|
31.5
|
22
|
95
|
6.5
|
66.5
|
18
|
20
|
36
|
21
|
35
|
21
|
G1/8"
|
G1/8"
|
4.3
|
-
|
|
4H230-06(S)
|
95
|
75.5
|
31.5
|
22
|
95
|
6.5
|
85.5
|
18
|
20
|
36
|
21
|
35
|
21
|
G1/8"
|
G1/8"
|
4.3
|
-
|
|
4H210-08
|
76
|
56.5
|
31.5
|
22
|
95
|
6.5
|
66.5
|
18
|
20
|
36
|
21
|
35
|
21
|
G1/8"
|
G1/4"
|
4.3
|
1.5
|
|
4H230-08L
|
76
|
56.5
|
31.5
|
22
|
95
|
6.5
|
66.5
|
18
|
20
|
36
|
21
|
35
|
21
|
G1/8"
|
G1/4"
|
4.3
|
1.5
|
|
4H230-08(S)
|
95
|
72.5
|
31.5
|
22
|
95
|
6.5
|
85.5
|
18
|
20
|
36
|
21
|
35
|
21
|
G1/8"
|
G1/4"
|
4.3
|
1.5
|
|
4H310-08
|
92
|
72.5
|
40
|
27
|
100
|
7.5
|
82.5
|
18
|
24
|
45
|
24
|
40
|
27
|
G1/4"
|
G1/4"
|
4.3
|
-
|
|
4H310-10
|
92
|
72.5
|
40
|
27
|
100
|
7.5
|
52.5
|
18
|
24
|
45
|
24
|
40
|
27
|
G1/4"
|
G3/8"
|
4.3
|
2
|
|
4H410-15
|
126
|
102
|
55.5
|
34
|
100
|
7.5
|
114
|
18
|
28
|
63
|
36
|
50
|
35
|
G1/2"
|
G1/2"
|
5.5
|
-
|
