Series: XGR (Regulator)

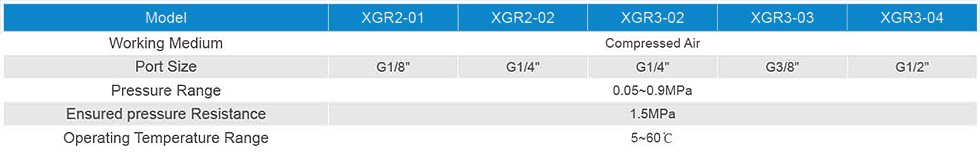

 Working Medium
|
Compressed Air
|
|
Port Size
|
G1/8"-G1/2"
|
|
Pressure Range
|
0.05~0.9MPa
|
|
Ensured pressure Resistance
|
1.5MPa
|
|
Operating Temperature Range
|
5~60℃
|
|

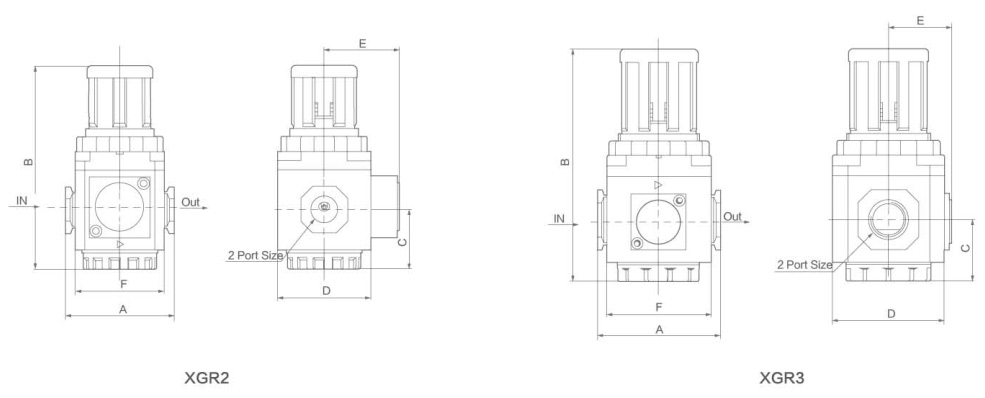

Model |
Port Size |
A |
B |
C |
D |
F |
I |
|
XGR2 |
G1/8-1/4" |
47 |
89 |
26 |
40 |
32.5 |
38 |
|
XGR3 |
G1/4-1/2" |
60 |
112 |
29.5 |
53 |
30 |
51 |
Accurate requlation of an optimal air fl...
Accurate regulation of an optimal airflo...
One-Touch push-to-connect configuration ...
