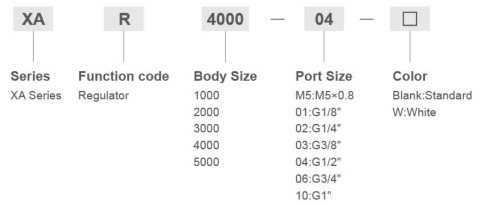

Series: XAR(Regulator)
 Highest Working Pressure
|
1.0MPa
|
|||||||||
|
Ensured Pressure Resistance
|
1.5MPa
|
|||||||||
|
Operating Temperature Range
|
5-60℃
|
|||||||||
|
Range of Adjustable Pressure
|
0.05-0.7MPa
|
0.05-0.85MPa
|
||||||||
|
Value Type
|
With Overflow
|
|||||||||
| Model |
XAR1000-M5 |
XAR2000-01 |
XAR2000-02 |
XAR3000-02 |
XAR3000-03 |
XAR4000-03 |
XAR4000-04 | XAR4000-06 | XAR5000-06 | XAR5000-10 |
| Rated Flow |
100 |
550 | 550 | 550 | 2500 | 6000 | 6000 | 6000 | 8000 | 8000 |
| Port Size | M5 | G1/8" | G1/4" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" |
| Highest Working Pressure | 0.7MPa | 1.0MPa | ||||||||
| Ensured pressure Resistance | 1.5MPa | |||||||||
| Operating Temperature Range | 5-60℃ | |||||||||
| Range of Adjustable Pressure | 0.05-0.7MPa | 0.05-0.85MPa | ||||||||
| Value Type | With Overflow | |||||||||
|
Model |
Port Size(G) |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
|
XAR1000 |
M5 |
25 |
61.5 |
11 |
25 |
26 |
25 |
28 |
30 |
4.5 |
6.5 |
40 |
2 |
20.5 |
|
XAR2000 |
G1/8"-G1/4" |
40 |
95 |
17 |
40 |
56.8 |
30 |
34 |
44 |
5.4 |
15.4 |
55 |
2.3 |
33.5 |
|
XAR3000 |
G1/4"-G3/8" |
53 |
127.5 |
35 |
53 |
60.8 |
41 |
40 |
46 |
6.5 |
8 |
53 |
2.3 |
52.5 |
|
XAR4000 |
G3/8"-1/2" |
70 |
149.5 |
37.5 |
70 |
69.5 |
50 |
54 |
54 |
8.5 |
10.5 |
70 |
2.3 |
52.5 |
|
XAR4000-06 |
G3/4" |
75 |
154 |
40.5 |
70 |
69.5 |
50 |
54 |
56 |
8.5 |
10.5 |
70 |
2.3 |
52.5 |
|
XAR5000 |
G3/4"-G1" |
90 |
168 |
48 |
90 |
75.5 |
70 |
66 |
65.8 |
11 |
13 |
90 |
3.2 |
52.5 |
