AFR,BFR( Filter&Regulato)
Series: AFR,BFR( Filter&Regulato)
 Operating Fluid
|
Air
|
||||
|
Range of Adjustable Pressure
|
0.05~0.85MPa
|
||||
|
Max Adjustable Pressure
|
0.95MPa
|
||||
|
Ensured Pressure Resistance
|
1.5MPa
|
||||
|
Operating Temperature Range
|
5-60℃
|
||||

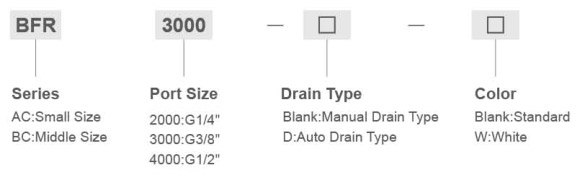

| Model |
AFR2000 |
BFR2000 |
BFR3000 | BFR4000 | |
| Operating Fluid | Air | ||||
| Port Size | G1/4" | G1/4" | G3/8" | G1/2" | |
| Range of Adjustable Pressure | 0.05~0.85MPa | ||||
| Max Adjustable Pressure | 0.95MPa | ||||
| Ensured Pressure Resistance | 1.5MPa | ||||
| Operating Temperature Range | 5-60℃ | ||||
| Capacitv of Filter Cup | 15 cc | 60 cc | |||
| Material | Body | Aluminum Die-casting Forming | |||
| Container Cup | PE | ||||
| Protedive Cup Cover | - | Iron | |||
Accurate requlation of an optimal air fl...
Accurate regulation of an optimal airflo...
One-Touch push-to-connect configuration ...
