M-UJ Type Float Joint
SUB-SERIES

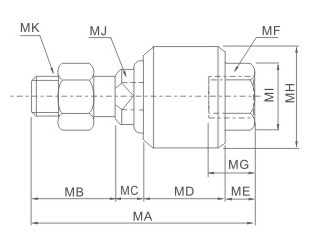

Overall Dimensions
| Symbol/Bore | MA | MB | MC | MD | ME | MF | MG | MH | MI | MJ | MK |
| 20 | 51 | 20 | 6 | 17 | 8 | M8*1.25 | 12 | 24 | 13 | 8 | M8*1.25 |
| 25 | 58 | 22 | 7 | 21 | 8 | M10*1.25 | 12 | 26 | 17 | 10 | M10*1.25 |
| 32 | 58 | 22 | 7 | 21 | 8 | M10*1.25 | 12 | 26 | 17 | 10 | M10*1.25 |
| 40 | 58 | 22 | 8 | 21 | 7 | M12*1.25 | 12 | 28 | 19 | 12 | M12*1.25 |
