M-PHS Type Fish Eye Joint
SERIES: Mini Cylinder Accessories
M-PHS Type Fish Eye Joint
FEATURES

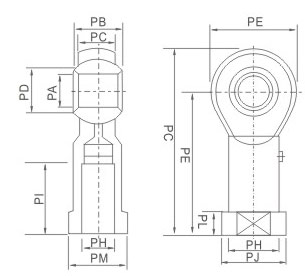

Overall Dimensions

Symbol/Bore PA PB PC PD PE PF PG PH PI PJ PK PL PM
20 8 12 9 10.4 22 36 47 M8*1.25 17 16 12.5 5 14
25 10 14 11 12.9 26 43 56 M10*1.25 21 19 15 6.5 17
32 10 14 11 12.9 26 43 56 M10*1.25 21 19 15 6.5 17
40 12 16 12 15.4 30 50 65 M12*1.25 24 22 17.5 6.5 19
